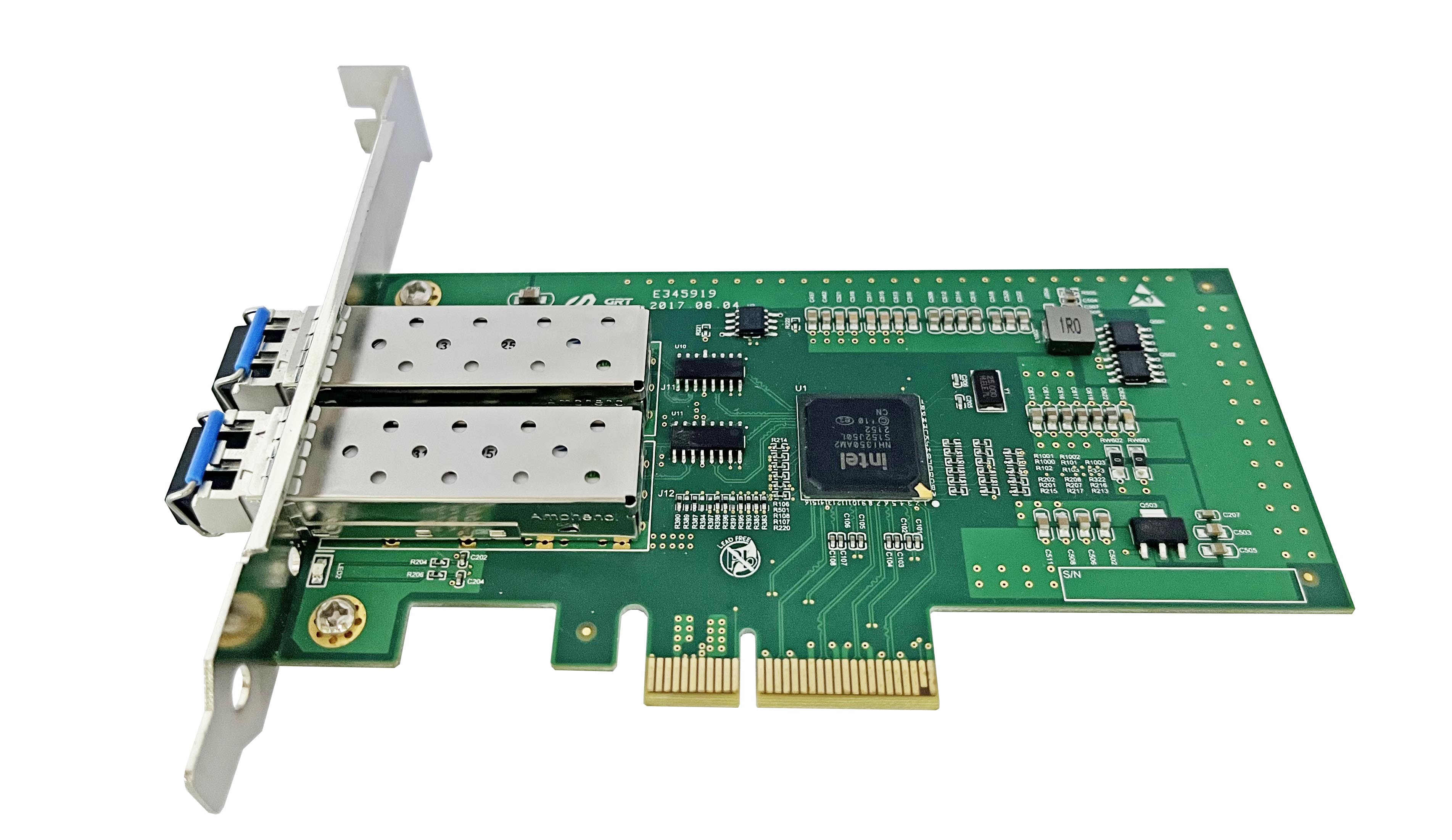

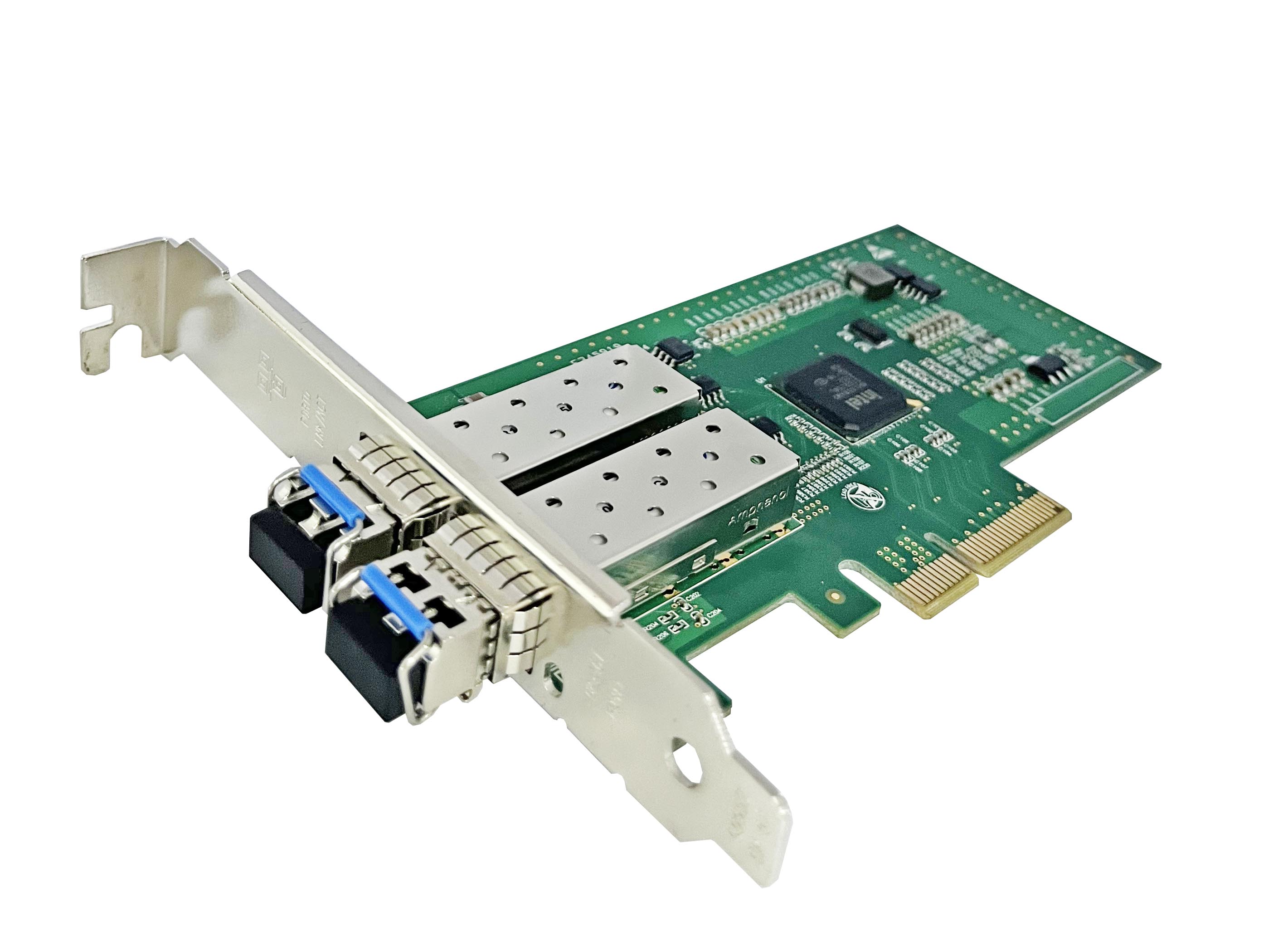

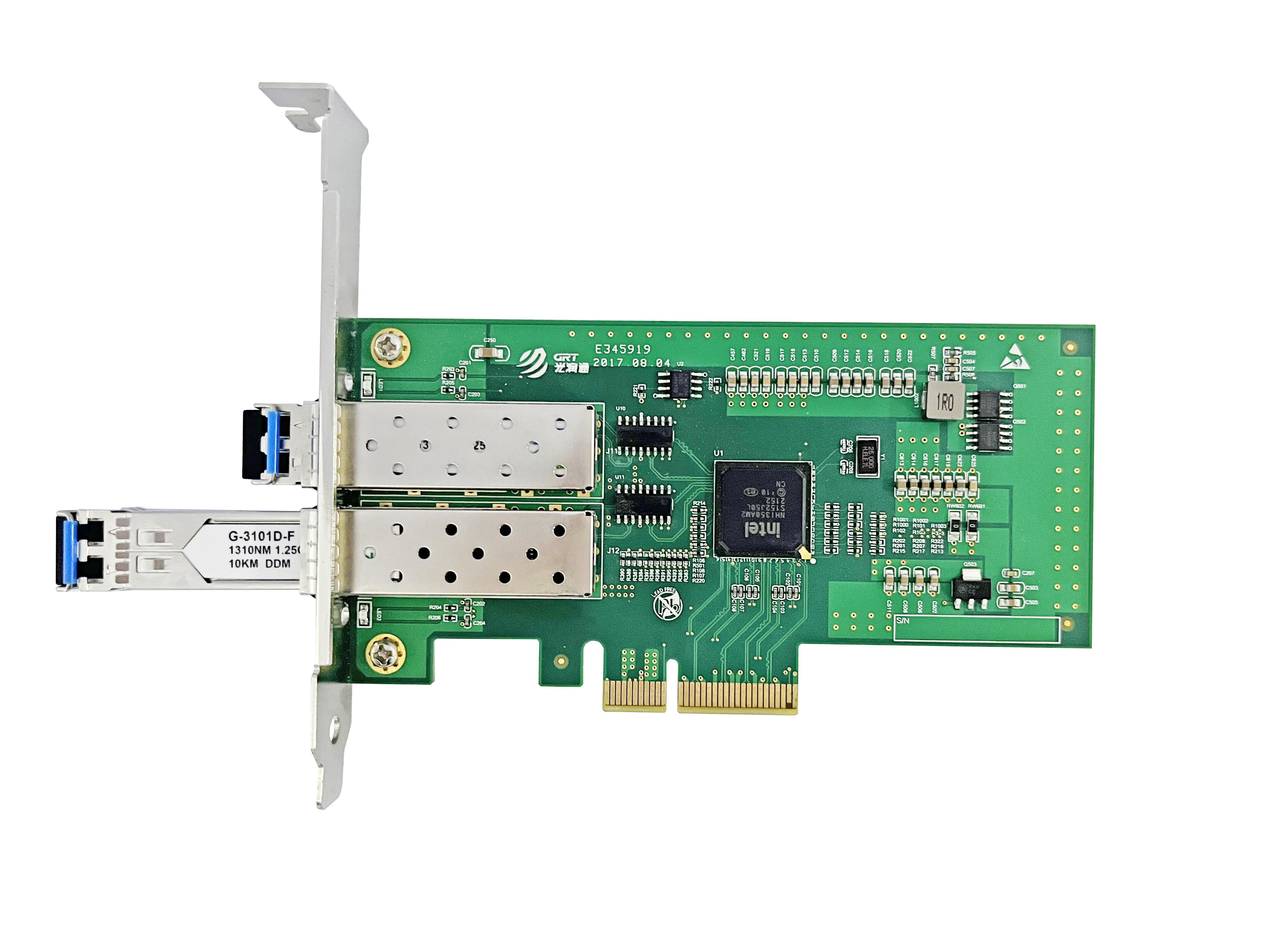

PCIe 10 Gigabit Dual-port Oneway Transmission for Only Sending Device Fiber Optic Ethernet Server Adapter Card NIC including 1 pcs of H-3110D-F

Price: $******
Code: GH902E-DF-V3.0
Brand: GRT
Support:OEM、ODM
+
-
Buy Now
Add to Cart
My Collection
Related Products

Product features

Dual-port Gigabit Ethernet adapter provides SFP module connectivity

One-way UDP transmission, physical isolation, one-way transmission

Innovative power management features and Energy Saving Ethernet (EEE), integrated direct memory increase efficiency and reduce power consumption

Flexible I/O virtualization technology provides up to 16 virtual channels for port differentiation and quality of service (QoS).

Scalable iSCSI provides cost-effective SAN connectivity performance

High-performance host interface design PCI Express 2.1

One-way transmission performance ensures the security of information, only supports UDP protocol



Key attributes

Model Number: GH902E-DF-V3.0

Brand Name: GRT

Warranty Time: 3 years

Certification: FCC, RoHS, CE

Data rate: 1GbE

Ethernet controller: Intel®I350AM2

Application: Servers, GAP, Firewall, storage device,etc.

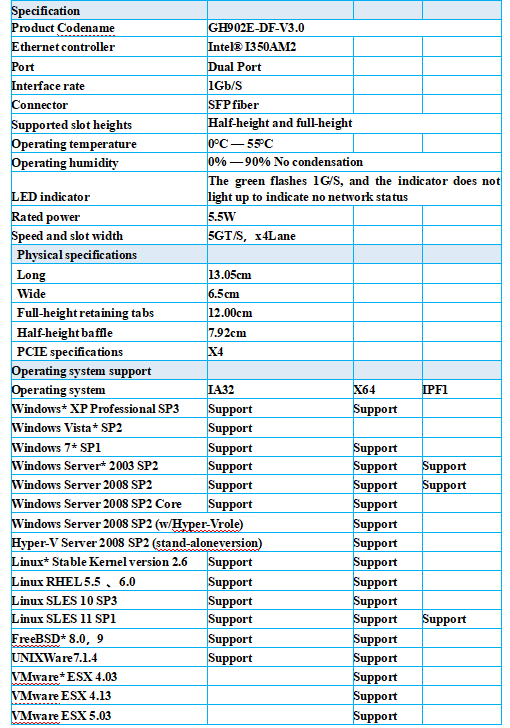

Specification







Product Codename

GH902E-DF-V3.0

Ethernet controller

Intel® I350AM2





Port

Dual Port





Interface rate

1Gb/S





Connector

SFP fiber





Supported slot heights

Half-height and full-height

Operating temperature

0°C — 55°C





Operating humidity

0% — 90% No condensation

LED indicator

The green flashes 1G/S, and the indicator does not light up to indicate no network status

Rated power

5.5W





Speed and slot width

5GT/S,x4Lane





Physical specifications







Long

13.05cm





Wide

6.5cm





Full-height retaining tabs

12.00cm





Half-height baffle

7.92cm





PCIE specifications

X4





Operating system support







Operating system

IA32

X64

IPF1

Windows* XP Professional SP3

Support

Support



Windows Vista* SP2

Support





Windows 7* SP1

Support

Support



Windows Server* 2003 SP2

Support

Support

Support

Windows Server 2008 SP2

Support

Support

Support

Windows Server 2008 SP2 Core

Support

Support



Windows Server 2008 SP2 (w/Hyper-Vrole)

Support



Hyper-V Server 2008 SP2 (stand-aloneversion)

Support



Linux* Stable Kernel version 2.6

Support

Support



Linux RHEL 5.5 、6.0

Support

Support



Linux SLES 10 SP3

Support

Support



Linux SLES 11 SP1

Support

Support

Support

FreeBSD* 8.0,9

Support

Support



UNIXWare7.1.4

Support

Support



VMware* ESX 4.03



Support



VMware ESX 4.13



Support



VMware ESX 5.03



Support





Product description

GH902E-DF&DS series Ethernet adapter products are based on Intel's I350AM2 Ethernet control research and development of dual-port optical fiber Ethernet adapter. This product is used in servers, firewalls, gateways and other high-end equipment. The adapter card is designed and optimized for performance so that system I/O is no longer a bottleneck for high-end network applications. The adapter is fault-tolerant through bundled groups, and traffic from the failed port is routed to other members in the same team. The adapter card has integrated hardware acceleration and is capable of performing UDP verification offload tasks. Host processing offloads accelerators, freeing up CPU resources to handle other applications. The adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

The I350AM2 chip-based Ethernet adapter card produced by Beijing Guangruntong represents a new step in the innovation and development of gigabit networks for enterprises and data centers.

Note: Because this product is a one-way transmission product, so only support UDP protocol, please contact our sales staff at the first time before placing an order, confirm that your use environment is available, before placing an order, do not place an order directly, so as not to cause unnecessary trouble, in addition, this network card product needs to be used with our Gigabit unidirectional module to achieve unidirectional transmission, single-mode and multi-mode correspondence to use, but pay attention to single-generation network card with single-generation module, single-receipt network card with single-receipt module.



Compatibility

All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.

For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.






Packing & Shipping

Packed in blister box and paper box,  1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.

We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
