Home > Products > 10G Fiber OCP Adapter> 10 Gigabit Quad optical ports SFP+ 10 Gigabit Ethernet OCP mezzanine card with Intel XL710BM1 chip

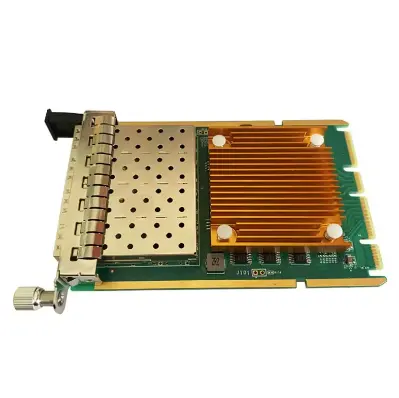

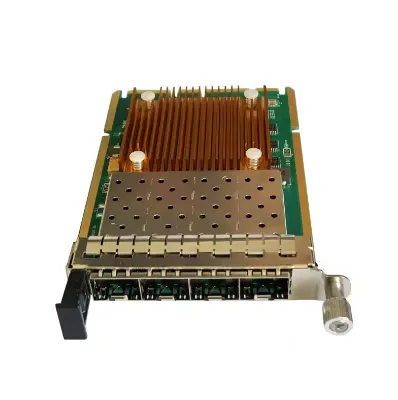

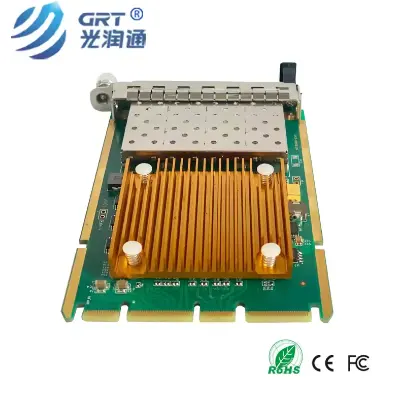

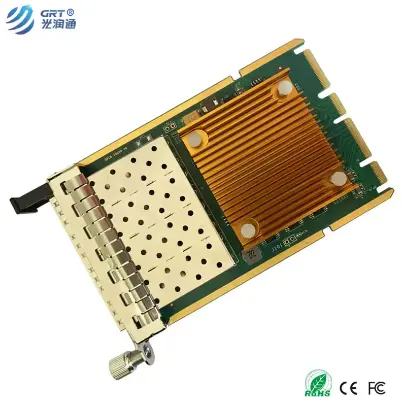

10 Gigabit Quad optical ports SFP+ 10 Gigabit Ethernet OCP mezzanine card with Intel XL710BM1 chip

Price: $******
Code: GH1004E-OCP-V3.0
Brand: GRT
Support:OEM、ODM
+
-
Buy Now
Add to Cart
My Collection
Related Products

Product features

Supports jumbo frames up to 9.5KB

Support for Flow Control

Priority Flow Control (IEEE 802.1Qbb)

Enhanced Transport Selection (IEEE802.1az)

Statistical management and RMON

802.1q VLAN support

DCB/DCB-X support

Message Signal Interrupt (MSI-X)

Storage - Smart offload solution via native OS(including NAS, iSCSI and FCoE) for competitive performance

Supports hot plugging



Key attributes

Model Number: GH1004E-OCP-V3.0

Brand Name: GRT

Warranty Time: 3 years

Certification: FCC, RoHS, CE

Data rate: 10GbE

Ethernet controller: Intel®XL710-BM1

Application: Servers, GAP, Firewall, storage device,etc.

Specification







Product Codename

GH1004E-OCP-V3.0

Ethernet controller

Intel® XL710-BM1





Port

Quad port





Interface rate

10Gb/S





Connector

SFP+ fiber port





Interface standards

OCP Mezzanine card 3.0 Design specifications PCI-Express Basic specification version 3.0(8GT / s)

Operating temperature

0°C — 55°C





Operating humidity

0% — 90% No condensation

LED indicator

Solid green is 10G/S, green flashing is link status, and the indicator is not lit to indicate no network status

QOS traffic management

Support





Virtual Machine Device Queue (VMDQ)

Support





Smart uninstall

Support





Intel Virtualization (SR-IOV)

Support





Rated power

7.6W





Speed and slot width

8GT/S,x8Lane





Operating system support







Operating system

IA32

X64

IPF1

Windows 7

Support

Support



Windows Server 2008 R2

Support

Support

Support

Windows Server 2008 R2 Core

Support

Support

Support

Windows Server 2016 Nano Server*

Support





Windows Server 2016*

Support





Windows* Server 2012 R2

Support





Windows Server 2012*

Support





Linux*



Support

Support

VMware*





Support

Solaris*





Support

Windows Vista* SP2

Support

Support



Windows Server 2003 SP2

Support

Support

Support

FreeBSD* 8.0



Support

Support

EFI* 1.1



Support

Support

uEFI* 2.1



Support

Support



Product description

GH1004E-OCP-V3.0 SFP+10 Gigabit Ethernet OCP 3.0 mezzanine card is based on the Intel XL710BM1 Ethernet controller with fully integrated 10 Gigabit Ethernet media access control (MAC) and SFI interface. In addition to managing MAC and PHY Ethernet layer functions, the controller also manages PCI Express packet traffic at its transactional, link, and physical/logical layers. With hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculation and TCP fragmentation.
Guangruntong SFP+ 10,000 Gigabit Ethernet OCP mezzanine card is an ideal solution for mission-critical high-performance network applications and environments that implement multiple network segments in high-performance OCP servers.
Host Interface:
Support for OCP Mezzanine Card 3.0 Design Specification
PCI Express Gen 3.0 x8 lanes
SFP+ 10,000 Gigabit Ethernet adapter.
•SRD: Fiber 1/10 Gigabit Ethernet 1000Base-SX/10GBASE-SR:
1000BASE-SX with 1G 850nM Small Form Factor Pluggable (SFP+)
10GBASE-SR with 10Gigabit 850nM Small Form Factor Pluggable (SFP+)
•LRD: Fiber 1/10 Gigabit Ethernet 1000Base-LX / 10GBASE-LR:
1000BASE-LX with 1G 1310nM Small Form Factor Pluggable (SFP+)
10GBASE-LR with 10Gigabit 1310nM Small Form Factor Pluggable (SFP+)

LAN and virtualization Function:
• VXLAN and NVGRE network virtualization offload
• Unified network provides single-wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
• Virtual bridging support - VEPA / 802.1Qbg,BPE / 802.1Qbh
• Virtualization supports 32 virtual ports per port
• Virtualization - Alleviates hypervisor I/O bottlenecks by providing stream separation for virtual machines (VM).



Compatibility

All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.

For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.






Packing & Shipping

Packed in blister box and paper box,  1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.

We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
