Home > Products > 10G Fiber OCP Adapter> 10 Gigabit Ethernet fiber optical Network Adapter for OCP( Open Compute Project) with Intel X710-BM2 chip

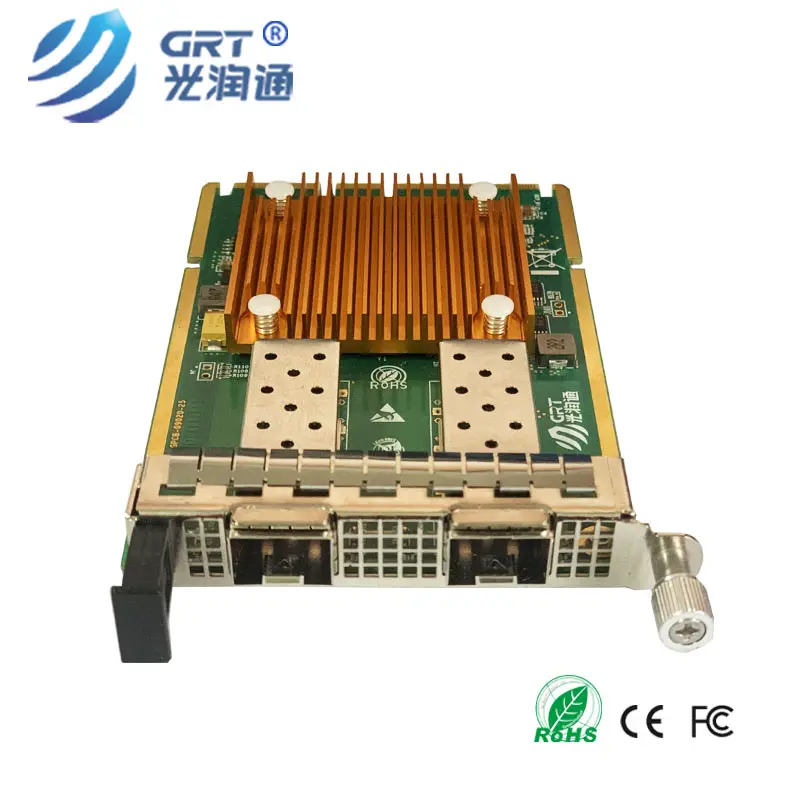

10 Gigabit Ethernet fiber optical Network Adapter for OCP( Open Compute Project) with Intel X710-BM2 chip

Price: $******
Code: GH1002E-OCP-V3.0
Brand: GRT
Support:OEM、ODM
+
-
Buy Now
Add to Cart
My Collection
Related Products

Product features

Supports jumbo frames up to 9.5KB

Support flow control

Priority flow control (IEEE 802.1Qbb)

Enhanced transport selection (IEEE802.1az)

Statistical management and RMON

802.1q VLAN support

DCB/DCB-X support

Message Signal Interruption (MSI-X)

Storage - Smart offload solution through native OS

 (including NAS, iSCSI and FCoE) to achieve competitive performance

Support hot swapping



Key attributes

Model Number: GH1002E-OCP-V3.0

Brand Name: GRT

Warranty Time: 3 years

Certification: FCC, RoHS, CE

Data rate: 10GbE

Ethernet controller: Intel®X710-BM2

Application: Servers, GAP, Firewall, storage device,etc.

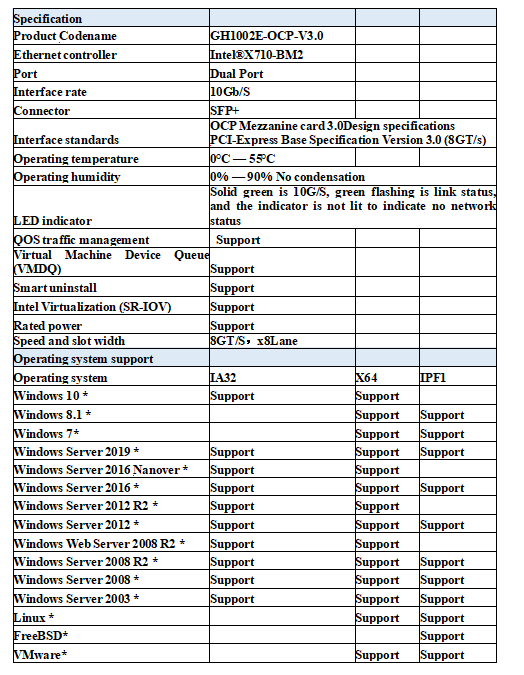

Specification







Product Codename

GH1002E-OCP-V3.0





Ethernet controller

Intel®X710-BM2





Port

Dual Port





Interface rate

10Gb/S





Connector

SFP+





Interface standards

OCP Mezzanine card 3.0Design specifications

PCI-Express Base Specification Version 3.0 (8GT/s)

Operating temperature

0°C — 55°C





Operating humidity

0% — 90% No condensation

LED indicator

Solid green is 10G/S, green flashing is link status, and the indicator is not lit to indicate no network status

QOS traffic management

 Support





Virtual Machine Device Queue (VMDQ)

Support





Smart uninstall

Support





Intel Virtualization (SR-IOV)

Support





Rated power

Support





Speed and slot width

8GT/S,x8Lane





Operating system support







Operating system

IA32

X64

IPF1

Windows 10 *

Support

Support



Windows 8.1 *



Support

Support

Windows 7*



Support

Support

Windows Server 2019 *

Support

Support

Support

Windows Server 2016 Nanover *

Support

Support



Windows Server 2016 *

Support

Support

Support

Windows Server 2012 R2 *

Support

Support



Windows Server 2012 *

Support

Support

Support

Windows Web Server 2008 R2 *

Support

Support



Windows Server 2008 R2 *

Support

Support

Support

Windows Server 2008 *

Support

Support

Support

Windows Server 2003 *

Support

Support

Support

Linux *



Support

Support

FreeBSD*





Support

VMware*



Support

Support



Product description

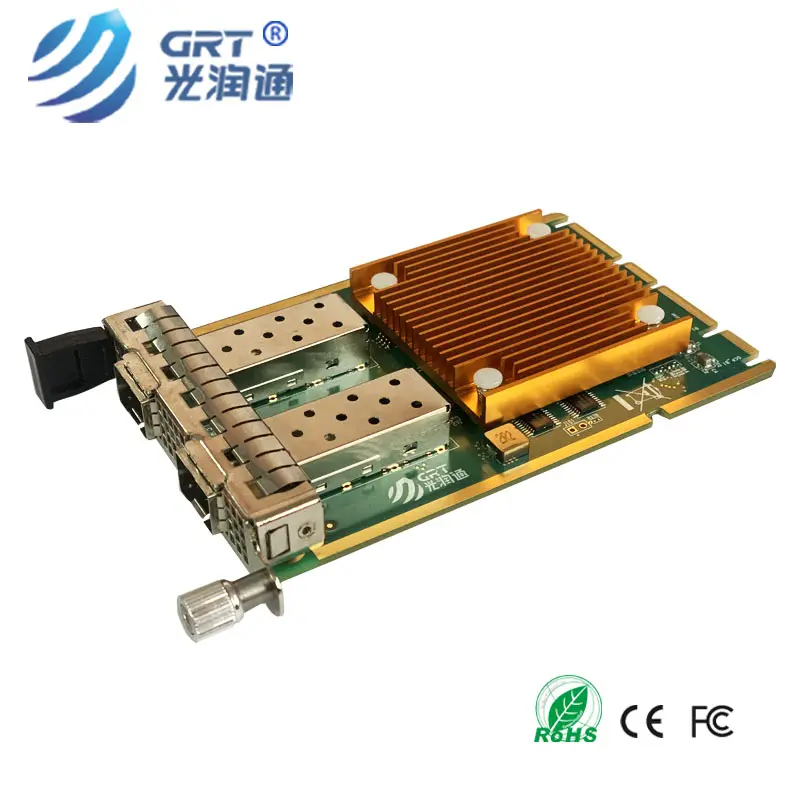

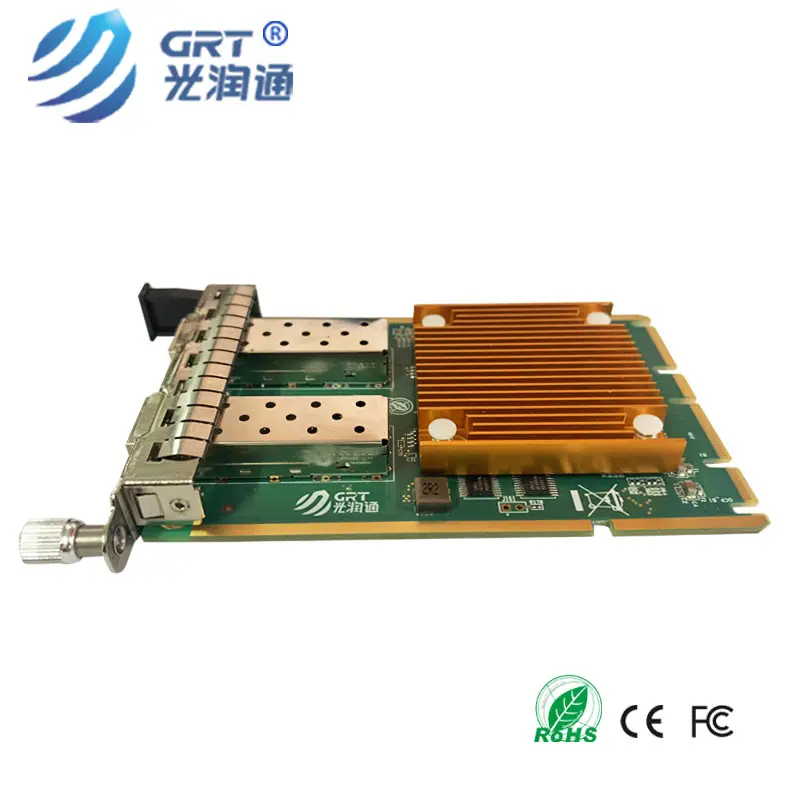

Guangruntong SFP+ 10 Gigabit Ethernet OCP 3.0 Ethernet card, based on Intel X710-BM2 Ethernet controller, with fully integrated 10 Gigabit Ethernet media access control (MAC) and SFI interface. In addition to managing MAC and PHY Ethernet layer functions, the controller also manages PCI Express packet traffic at its transactional, link, and physical/logical layers. With hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculation and TCP fragmentation.
GRT SFP+ 10,000 Gigabit Ethernet OCP 3.0 Ethernet card is an ideal solution for implementing multiple network segments, mission-critical high-performance network applications and environments in high-performance OCP 3.0 servers.
Host Interface:
•Supports OCP 3.0 card design specifications
PCI Express Gen 3.0 x8 lanes
Dimensions and dimensions:
 SFP + 10,000 Gigabit Ethernet adapter.
•SRD: Fiber 1/10 Gigabit Ethernet 1000Base-SX / 10GBASE-SR:
1000BASE-SX with 1G 850nm Small Form Factor Pluggable (SFP+)
10GBASE-SR with 10Gigabit 850nm Small Form Factor Pluggable (SFP+)
•LRD: Fiber 1/10 Gigabit Ethernet 1000Base-LX / 10GBASE-LR:
1000BASE-LX with 1G 1310nm Small Form Factor Pluggable (SFP+)
10GBASE-LR with 10Gigabit 1310nm Small Form Factor Pluggable (SFP+)
LAN and virtualization Function:
VXLAN and NVGRE network virtualization offload
Unified network provides single-wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE)
• Virtual bridging support – VEPA/802.1Qbg, BPE/802.1Qbh
• Virtualization supports 64 virtual ports per port
• Virtualization - Alleviates hypervisor I/O bottlenecks by providing stream separation for virtual machines (VMs).



Compatibility

All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.

For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.






Packing & Shipping

Packed in blister box and paper box,  1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.

We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.








Specification







Product Codename

GH1002E-OCP-V3.0





Ethernet controller

Intel®X710-BM2





Port

Dual Port





Interface rate

10Gb/S





Connector

SFP+





Interface standards

OCP Mezzanine card 3.0Design specifications

PCI-Express Base Specification Version 3.0 (8GT/s)

Operating temperature

0°C — 55°C





Operating humidity

0% — 90% No condensation

LED indicator

Solid green is 10G/S, green flashing is link status, and the indicator is not lit to indicate no network status

QOS traffic management

 Support





Virtual Machine Device Queue (VMDQ)

Support





Smart uninstall

Support





Intel Virtualization (SR-IOV)

Support





Rated power

Support





Speed and slot width

8GT/S,x8Lane





Operating system support







Operating system

IA32

X64

IPF1

Windows 10 *

Support

Support



Windows 8.1 *



Support

Support

Windows 7*



Support

Support

Windows Server 2019 *

Support

Support

Support

Windows Server 2016 Nanover *

Support

Support



Windows Server 2016 *

Support

Support

Support

Windows Server 2012 R2 *

Support

Support



Windows Server 2012 *

Support

Support

Support

Windows Web Server 2008 R2 *

Support

Support



Windows Server 2008 R2 *

Support

Support

Support

Windows Server 2008 *

Support

Support

Support

Windows Server 2003 *

Support

Support

Support

Linux *



Support

Support

FreeBSD*





Support

VMware*



Support

Support
