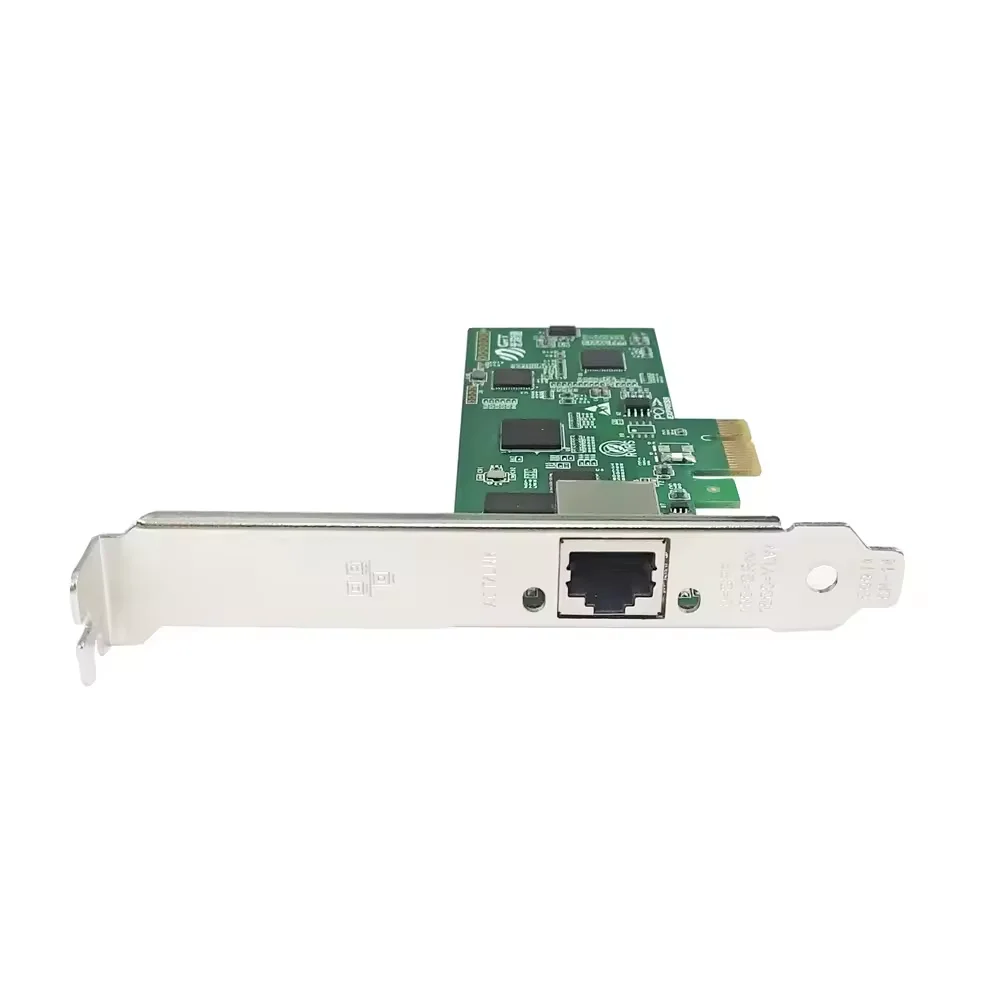

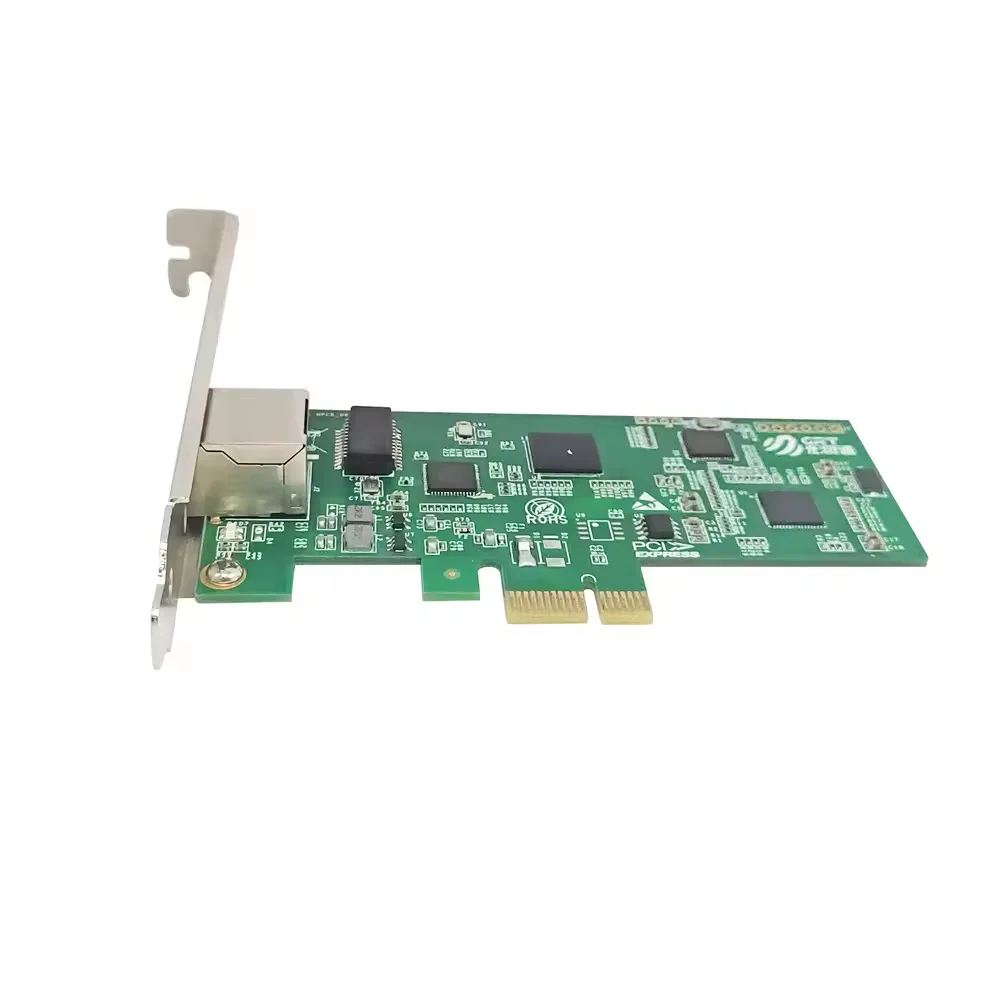

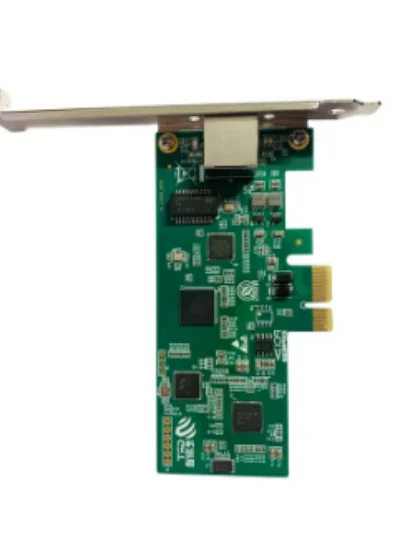

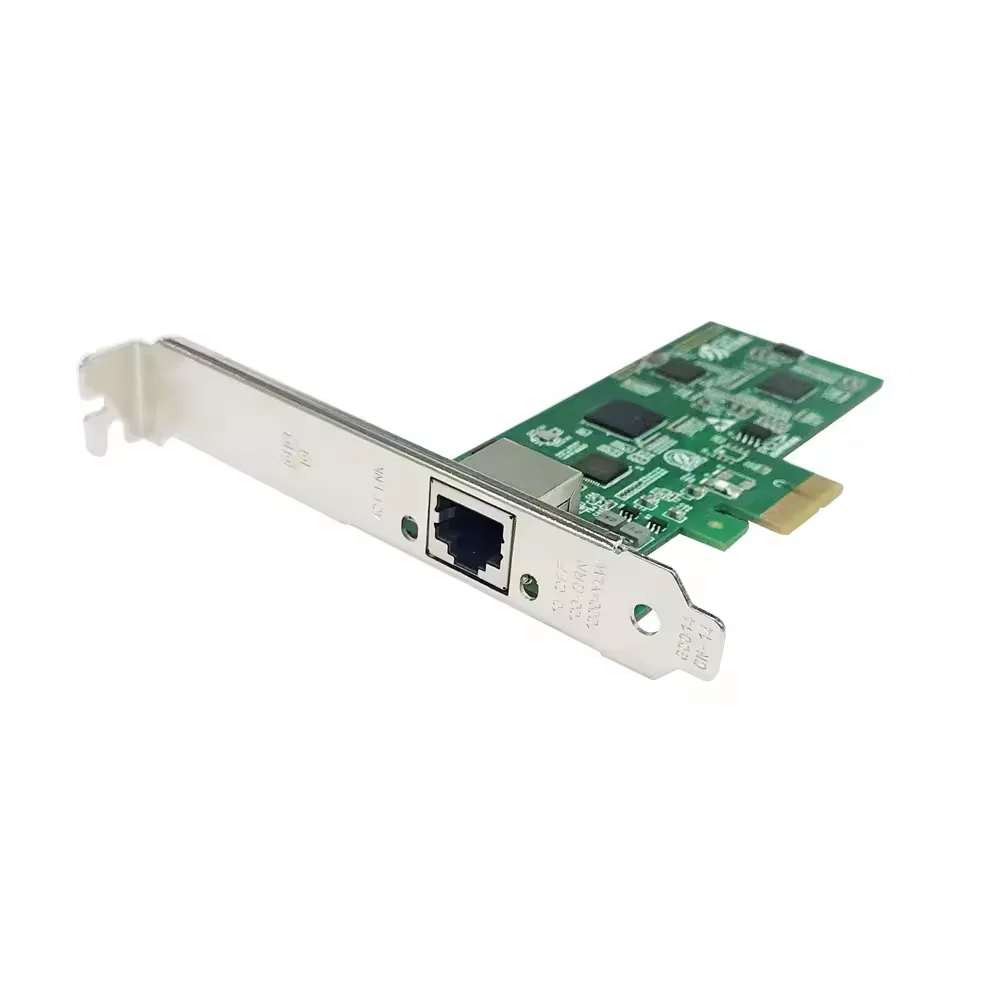

Gigabit single RJ45 copper port server Smart Encryption Adapter with Intel I210AT chip

Price: $******
Code: GH901T-ZN-V2.0
Brand: GRT
Support:OEM、ODM
+
-
Buy Now
Add to Cart
My Collection
Related Products

Product features

One port Gigabit Ethernet adapter provides RJ45 connectivity

Support for giant frame can reach 9.5 KB

Support for receiver scaling under the Windows system

Support for PCI Express*V2.1(5GT/s)

Support for hardware acceleration and IPV 6protocol, extend the standard packet mode

High-performance host interface design PCI Express 2.1

Pure hardware chip-level encryption to meet the application of different scenarios



Key attributes

Model Number: GH901T-ZN-V2.0

Brand Name: GRT

Warranty Time: 3 years

Certification: FCC, RoHS, CE

Data rate: 1GbE

Ethernet controller: Intel®I210AT

Application: Servers, GAP, Firewall, storage device,etc.

Specifications







Product code

GH901T-ZN-V2.0





Ethernet controller

Intel ® I210AT





Port.

Single  port





Interface rate

1Gb/S





The connector

RJ45





TCP encrypted transmission

942Mb/ S





Udp encrypted transmission

953Mb/S





Supported slot height

Half-height and full-height





Operating temperature

0 °C- 55°C





Working humidity

0%- 90% no condensation





LED

Green flashes  is 1G, the LED is not lit to no network state

Rated power

Below 1W





Speed and slot width

5GT/S,x4Lane





Physical specifications



Long.

10.914cm

Wide.

5.015cm

Long Bracket

12.00cm

Short Bracket

7.92cm

PCIE specifications

X1

Operating system support







Operating system.

IA32

X64

IPF1

Windows* XP Professional SP3

Support

Support



Windows Vista* SP2

Support





Windows 7* SP1

Support

Support



Windows Server* 2003 SP2

Support

Support

Support

Windows Server 2008 SP2

Support

Support

Support

Windows Server 2008 SP2 Core

Support

Support



Windows Server 2008 SP2

(w/Hyper-V role)



Support



Hyper-V Server 2008 SP2 (stand-alon eversion)



Support



Linux* Stable Kernel version 2.6

Support

Support



Linux RHEL 5.5 、6.0

Support

Support



Linux SLES 10 SP3

Support

Support



Linux SLES 11 SP1

Support

Support

Support

FreeBSD* 8.0

Support

Support



EFI* 1.1





Support

uEFI* 2.1



Support

Support

VMware* ESX 4.03



Support



VMware ESX 4.13



Support



VMware ESX 5.03



Support





Product description

GH901T series Ethernet adapter products are based on Intel's I210IS Ethernet controller developed Gigabit one port interface Ethernet intelligent encryption adapter. This product is used in high-end devices such as servers ,desktop computers, and firewalls. The adapter card is designed and optimized for performance so that system I/O is no longer a bottleneck for high-end network applications. The adapter card has integrated hardware acceleration and is capable of performing TCP/UDP/IP checksum offloading and TCP segmentation tasks. Host processing offloads accelerators, freeing up CPU resources to handle other applications. The adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

Guangruntong intelligent encryption card is a P2P intelligent network card that allows the encryption and decryption of transmitted data, which provides a strong hardware guarantee for the security of data transmission. During the entire transmission process, the encryption and decryption of data is realized based on the network card hardware, completely free from the dependence on software. Completely get rid of the risk of plaintext leakage during data transmission. The SM4 and AES algorithms ensure data unhackability. In addition to the data encryption transmission function, it can also protect and isolate the enterprise intranet. While maintaining the high-speed transmission of P2P on the original intranet, it can block any network products that illegally access the enterprise intranet.

There are two main working modes: encryption mode and intranet protection mode, and the internal network protection mode only works within the enterprise.

In encryption mode, the sender and receiver must be connected to the GH901T-ZN-V2.0 network card at the same time to realize the communication between the two end devices, and there are no special requirements in the internal network protection mode.

The encryption and decryption algorithm adopts: national secret SM4 ECB 128, business secret AES ECB 128.



Compatibility

All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.

For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.






Packing & Shipping

Packed in blister box and paper box,  1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.

We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.

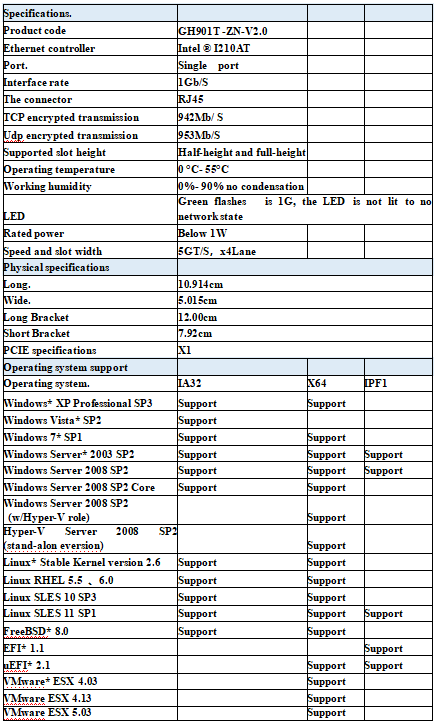

Specification







Product code

GH901T -ZN-V2.0





Ethernet controller

Intel ® I210AT





Port.

Single  port





Interface rate

1Gb/S





The connector

RJ45





TCP encrypted transmission

942Mb/ S





Udp encrypted transmission

953Mb/S





Supported slot height

Half-height and full-height





Operating temperature

0 °C- 55°C





Working humidity

0%- 90% no condensation





LED

Green flashes  is 1G, the LED is not lit to no network state

Rated power

Below 1W





Speed and slot width

5GT/S,x4Lane





Physical specifications



Long.

10.914cm

Wide.

5.015cm

Long Bracket

12.00cm

Short Bracket

7.92cm

PCIE specifications

X1

Operating system support







Operating system.

IA32

X64

IPF1

Windows* XP Professional SP3

Support

Support



Windows Vista* SP2

Support





Windows 7* SP1

Support

Support



Windows Server* 2003 SP2

Support

Support

Support

Windows Server 2008 SP2

Support

Support

Support

Windows Server 2008 SP2 Core

Support

Support



Windows Server 2008 SP2

(w/Hyper-V role)



Support



Hyper-V Server 2008 SP2 (stand-alon eversion)



Support



Linux* Stable Kernel version 2.6

Support

Support



Linux RHEL 5.5 、6.0

Support

Support



Linux SLES 10 SP3

Support

Support



Linux SLES 11 SP1

Support

Support

Support

FreeBSD* 8.0

Support

Support



EFI* 1.1





Support

uEFI* 2.1



Support

Support

VMware* ESX 4.03



Support



VMware ESX 4.13



Support



VMware ESX 5.03



Support
