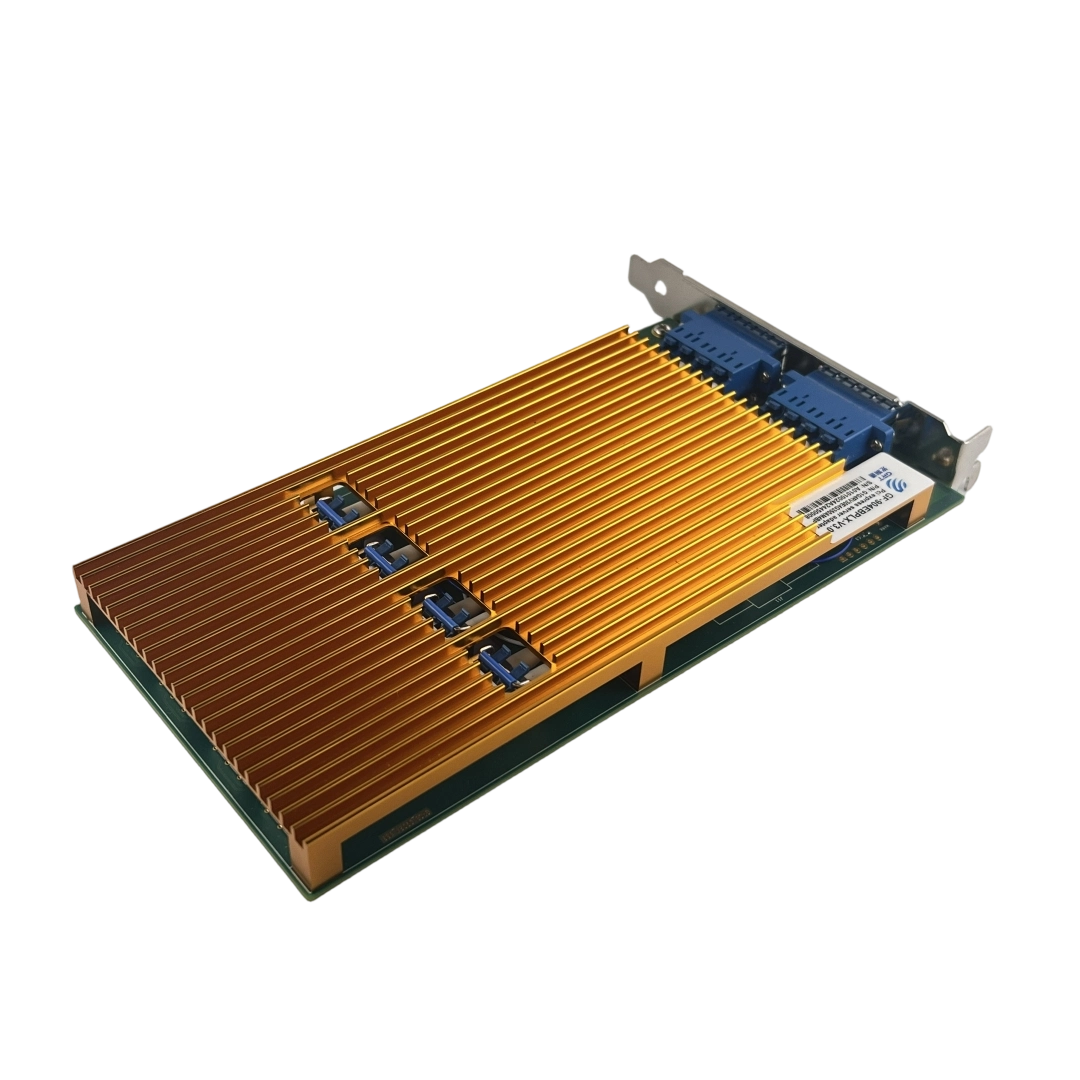

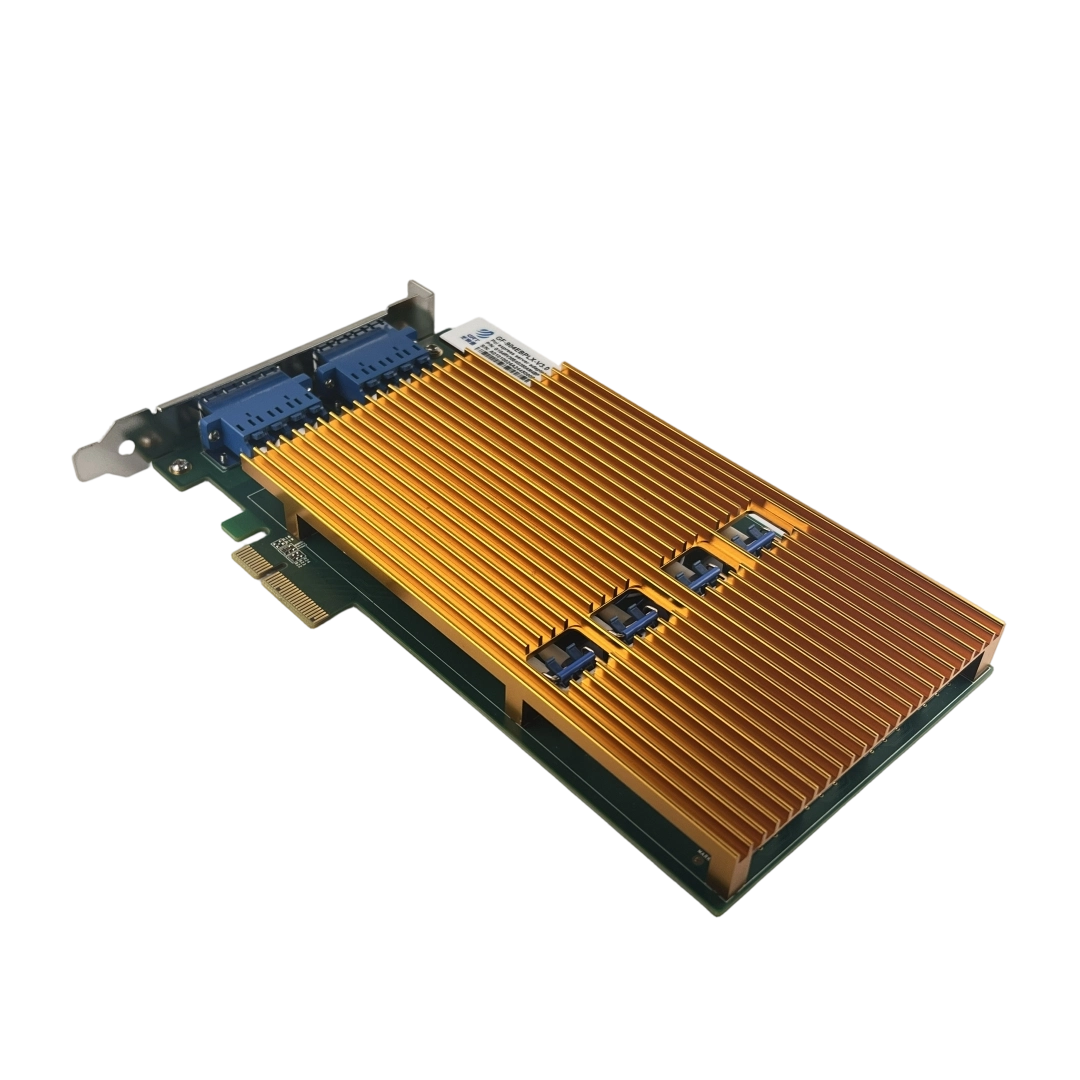

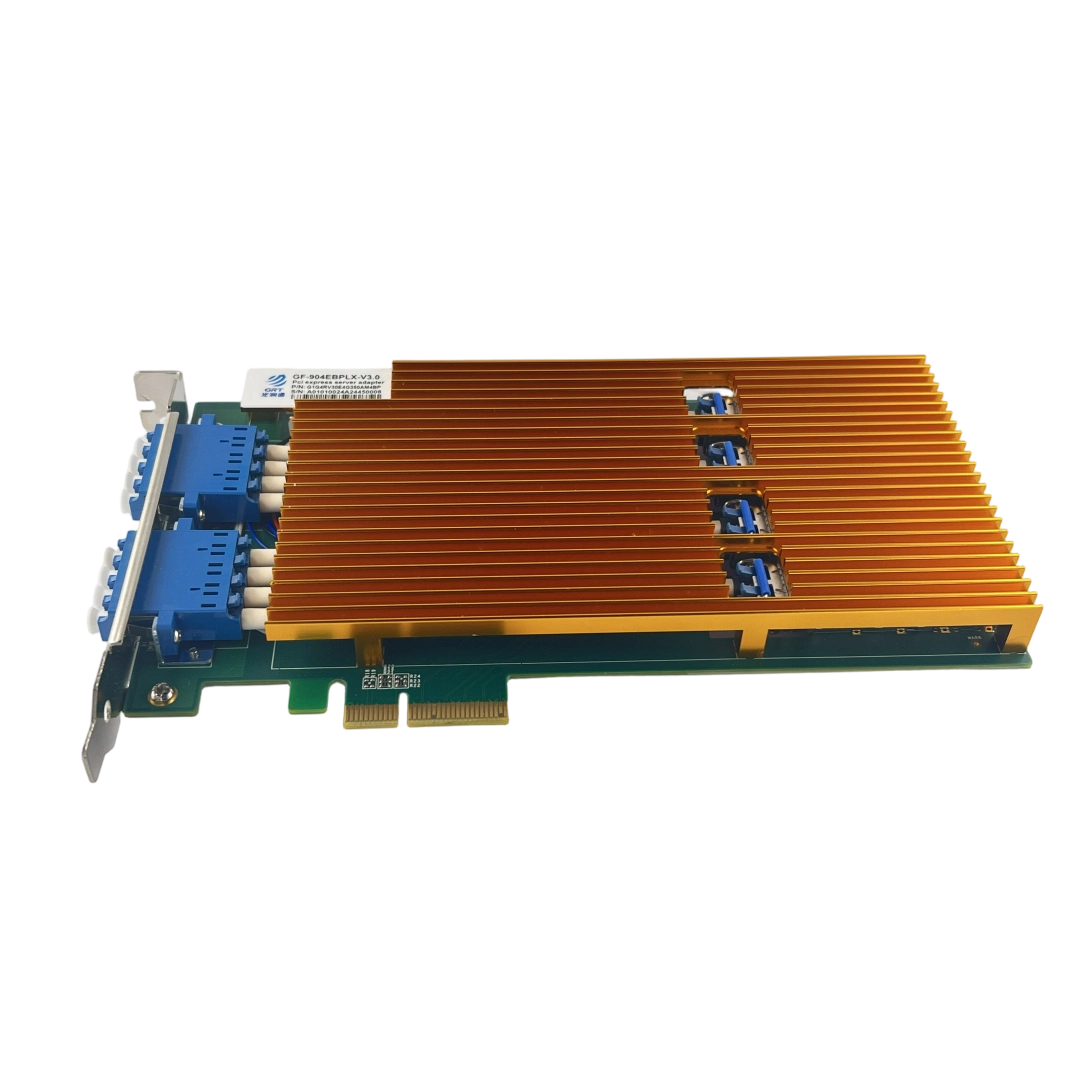

Gigabit Quad-Port Ethernet Server Bypass Adapter with GRT G350AM4Ⓔ with LX Module

Price: $******
Code: FF-904EBPLX-V3.0
Brand: GRT
Support:OEM、ODM
+
-
Buy Now
Add to Cart
My Collection
Related Products

Product features

Four-port Gigabit Ethernet adapter provides Gigabit single-mode SFP optical interface connection

Innovative power management features and Energy Efficient Ethernet, integrated direct access memory improve efficiency and reduce power consumption

Intelligent bypass control chip, open source API design integrates standard NIC functionsand Bypass function​

Purely domestically designed, independent and controllable



Key attributes

Model Number: FF-904EBPLX-V3.0

Brand Name: GRT

Warranty Time: 3 years

Certification: FCC, RoHS, CE

Data rate: 1GbE

Ethernet controller: GRT®G350AM4Ⓔ

Application: Servers, GAP, Firewall, storage device,etc.

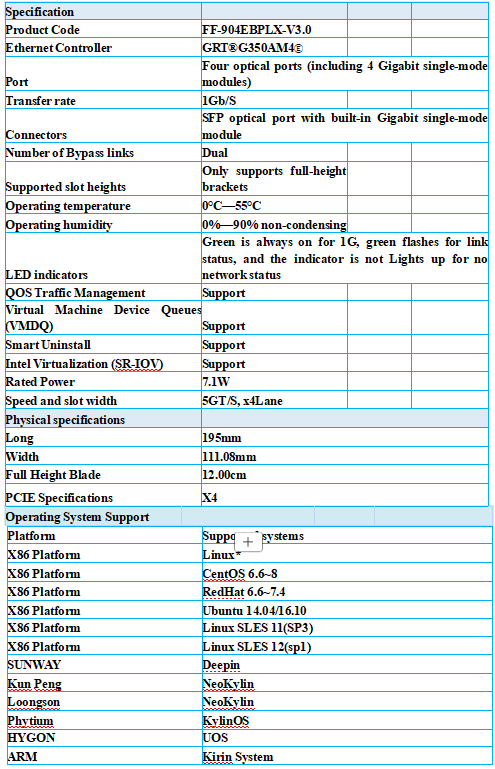

Specification







Product Code

FF-904EBPLX-V3.0





Ethernet Controller

GRT®G350AM4Ⓔ





Port

Four optical ports (including 4 Gigabit single-mode modules)

Transfer rate

1Gb/S





Connectors

SFP optical port with built-in Gigabit single-mode module

Number of Bypass links

Dual





Supported slot heights

Only supports full-height brackets





Operating temperature

0°C—55°C





Operating humidity

0%—90% non-condensing





LED indicators

Green is always on for 1G, green flashes for link status, and the indicator is not Lights up for no network status

QOS Traffic Management

Support





Virtual Machine Device Queues (VMDQ)

Support





Smart Uninstall

Support





Intel Virtualization (SR-IOV)

Support





Rated Power

7.1W





Speed and slot width

5GT/S, x4Lane





Physical specifications



Long

195mm

Width

111.08mm

Full Height Blade

12.00cm

PCIE Specifications

X4

Operating System Support



Platform

Supported systems

X86 Platform

Linux*

X86 Platform

CentOS 6.6~8

X86 Platform

RedHat 6.6~7.4

X86 Platform

Ubuntu 14.04/16.10

X86 Platform

Linux SLES 11(SP3)

X86 Platform

Linux SLES 12(sp1)

SUNWAY

Deepin

Kun Peng

NeoKylin

Loongson

NeoKylin

Phytium

KylinOS

HYGON

UOS

ARM

Kirin System



Product description

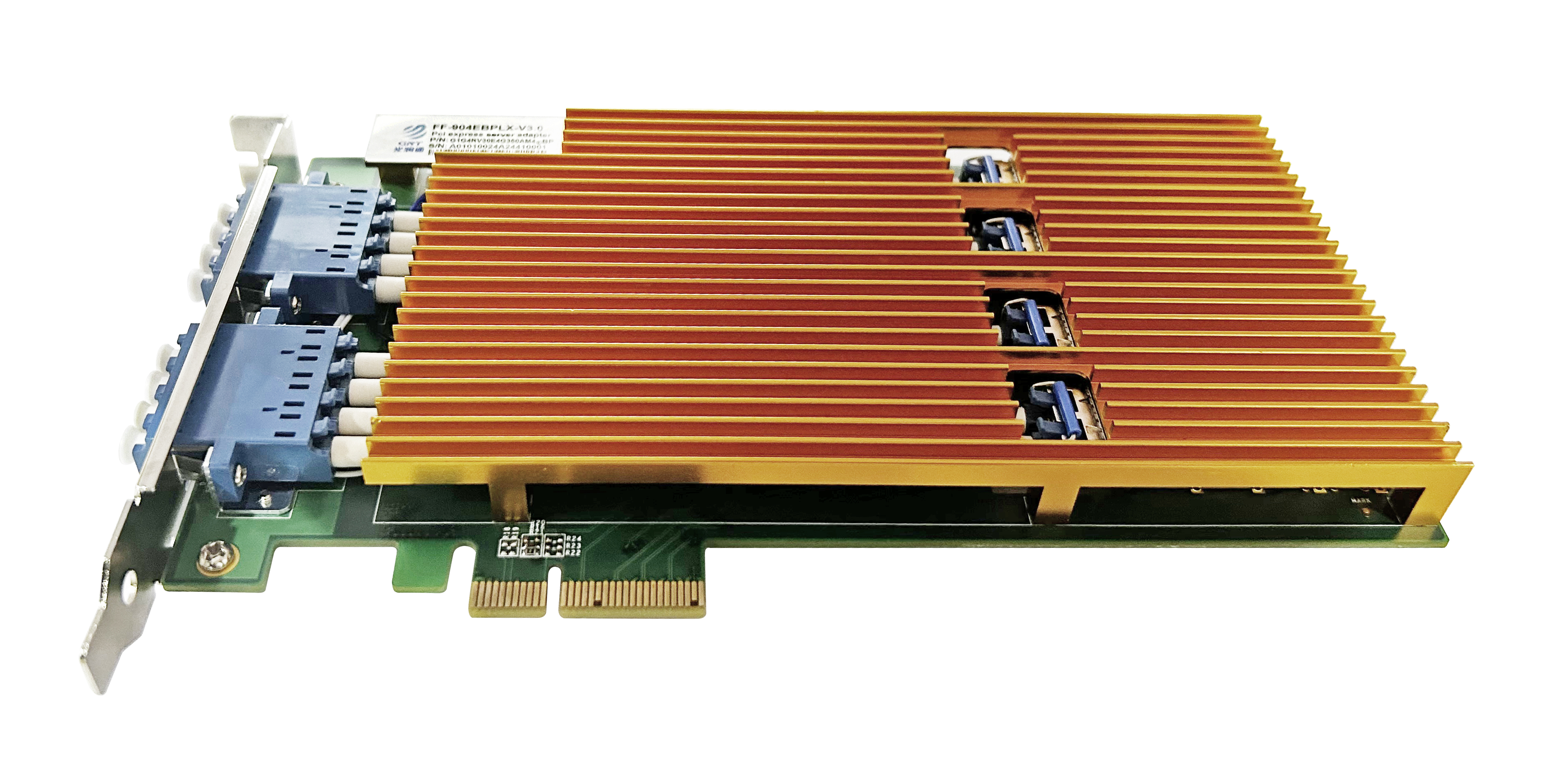

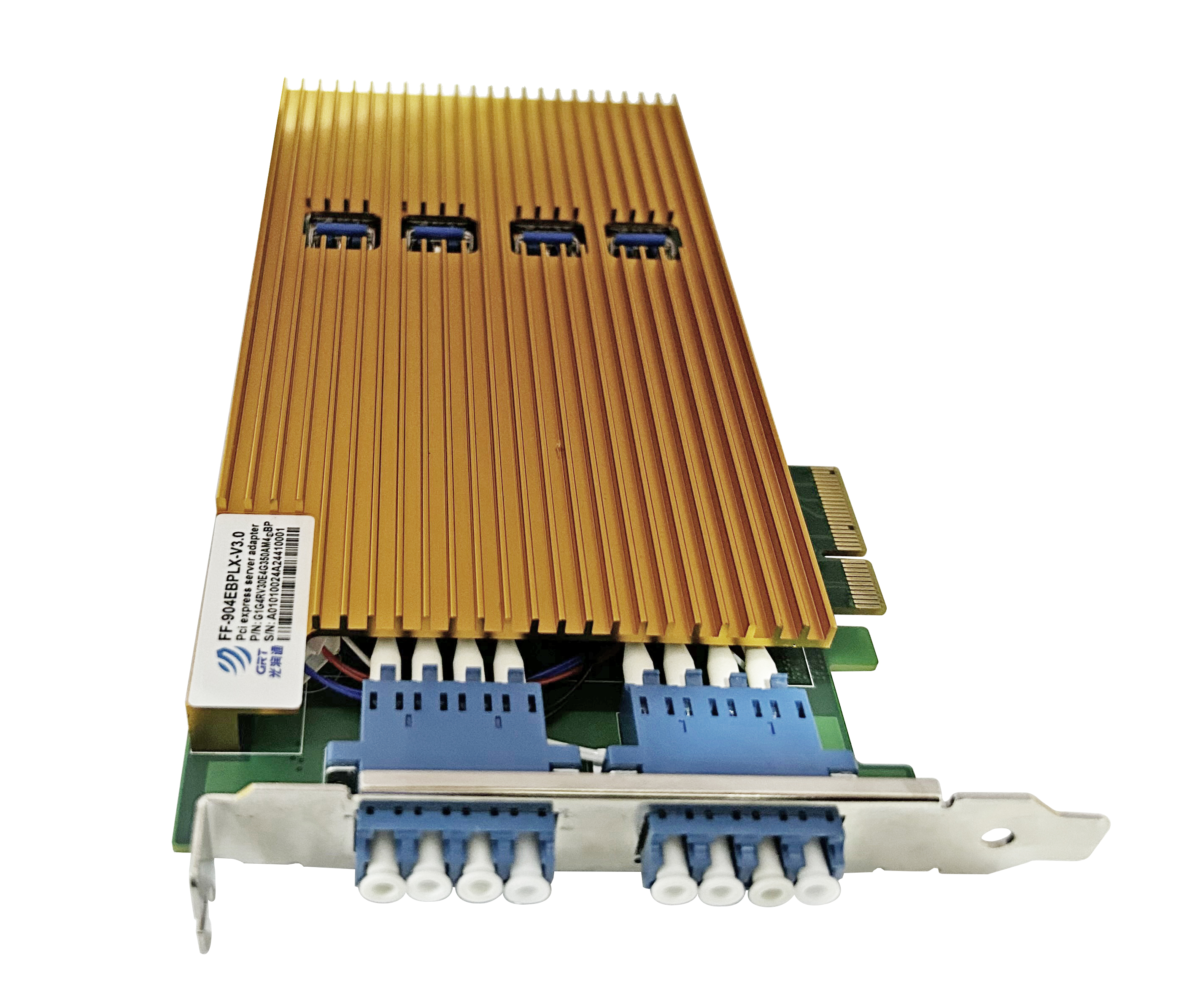

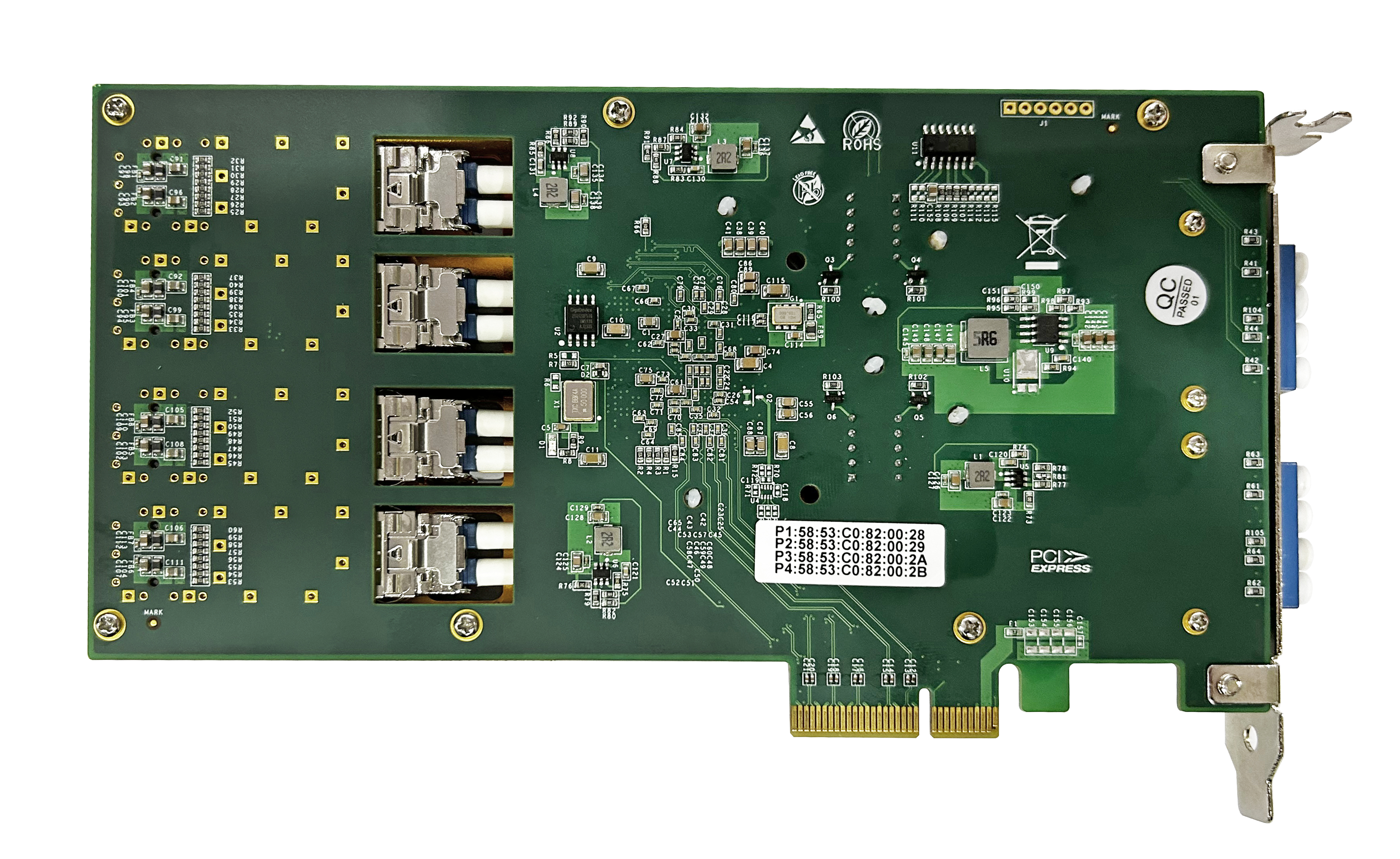

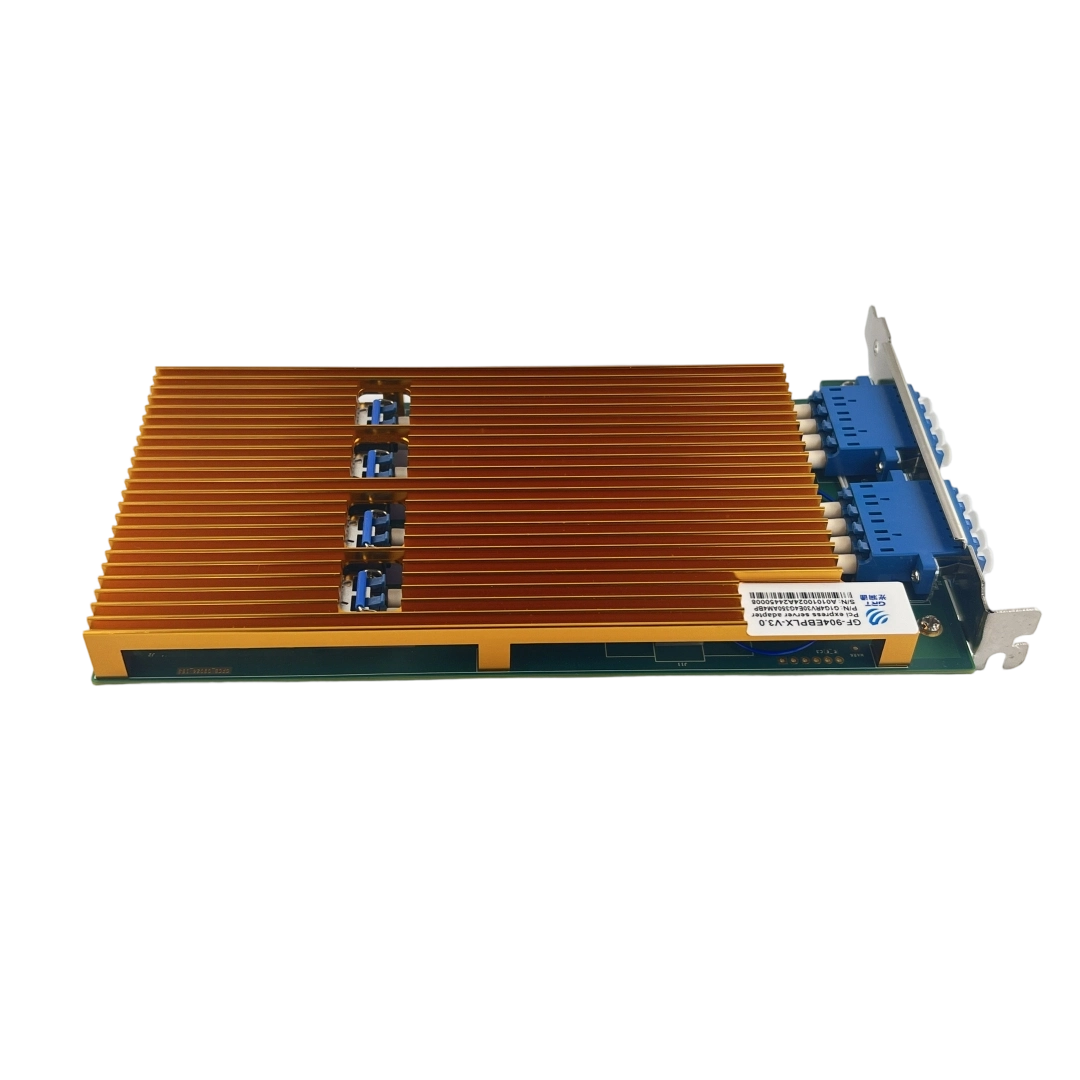

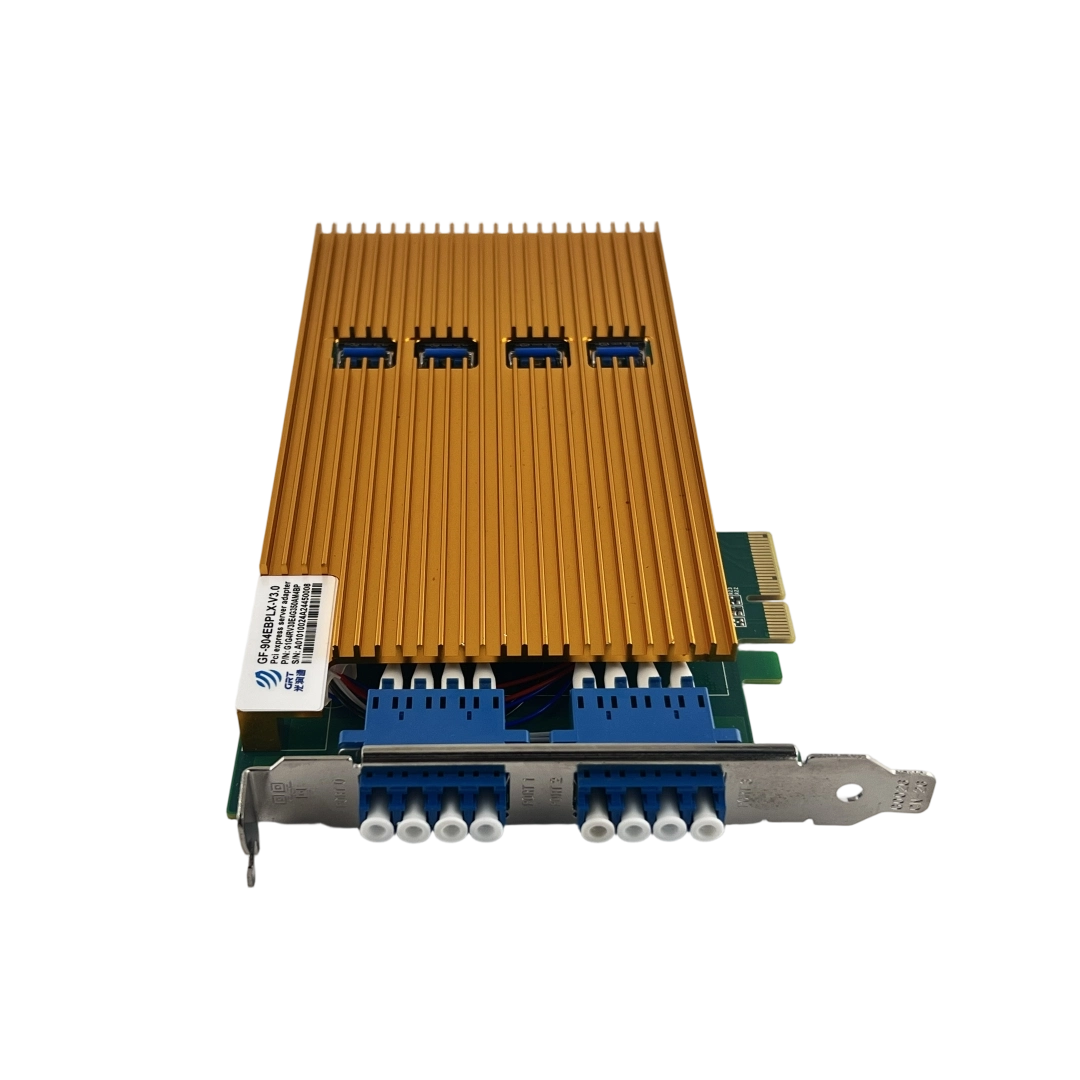

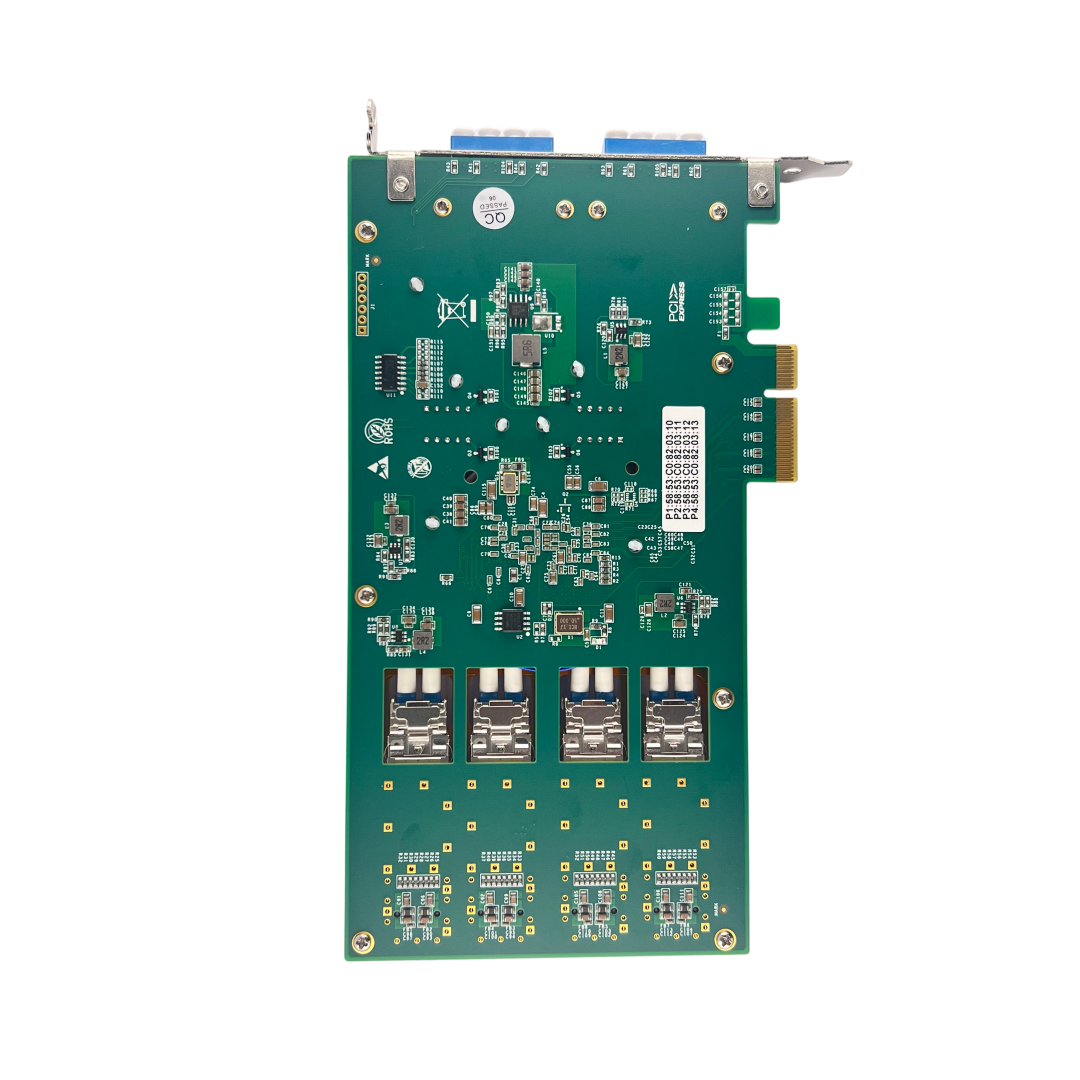

The Gigabit single-mode SFP optical port Bypass Ethernet bypass server adapter produced by Guangruntong, FF-904EBPLX-V3.0 is a PCI-Express X4 network interface card. The adapter contains four Gigabit Ethernet ports and 4 Gigabit 1310nm single-mode optical modules. The FF-904EBPLX-V3.0 adapter is oriented to inline network systems. When a network link fails, it can switch to bypass and continue to communicate, providing a backup link protection mechanism.

The FF-904EBPLX-V3.0 four-port Gigabit Ethernet bypass server adapter supports normal bypass and disconnect modes. In normal mode, the ports are independent interfaces, while in bypass mode, all data packets received from one port are transmitted to the adjacent port, and in disconnect mode, the adapter simulates a switch/path cable disconnection.

The FF-904EBPLX-V3.0 server adapter can bypass or disconnect its Ethernet port when the host system fails or the power is turned off. Continue to work in bypass mode, the connection is switched to another port, so in bypass mode, all packets received from one port are sent to the adjacent port and vice versa. This feature can bypass the failed system and provide the longest uptime for the network. FF-904EBPLX-V3.0 Quad-Port Gigabit PCI Bypass Server Adapter, includes an onboard WDT (Watchdog Timer) controller. The adapter's software driver or software application can write commands to the onboard WDT controller. The adapter's software driver, WDT controller and bypass circuit provide an interface to control and manage the adapter mode.

Guangruntong FF-904EBPLX-V3.0 Quad-Port Gigabit Ethernet Bypass Server Adapter, based on Guangruntong G350AM4Ⓔ Ethernet controller, has superior product performance.



Compatibility

All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.

For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.






Packing & Shipping

Packed in blister box and paper box,  1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.

We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.

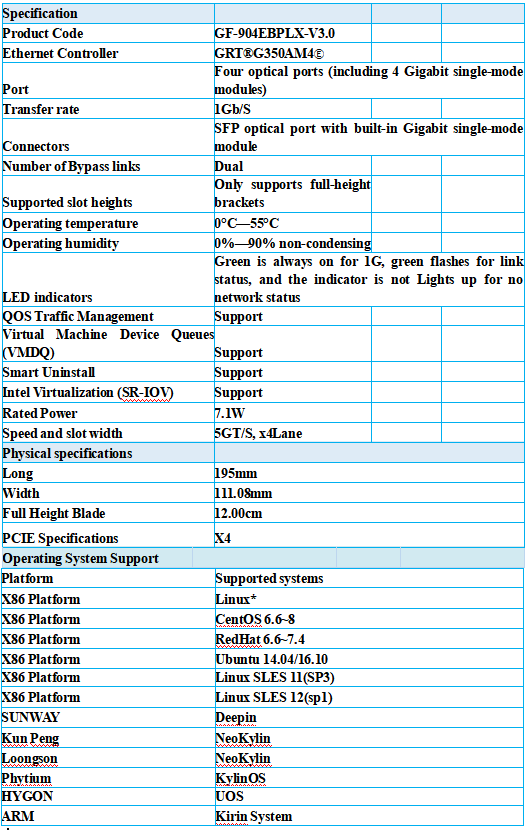

Specification







Product Code

FF-904EBPLX-V3.0





Ethernet Controller

GRT®G350AM4Ⓔ





Port

Four optical ports (including 4 Gigabit single-mode modules)

Transfer rate

1Gb/S





Connectors

SFP optical port with built-in Gigabit single-mode module

Number of Bypass links

Dual





Supported slot heights

Only supports full-height brackets





Operating temperature

0°C—55°C





Operating humidity

0%—90% non-condensing





LED indicators

Green is always on for 1G, green flashes for link status, and the indicator is not Lights up for no network status

QOS Traffic Management

Support





Virtual Machine Device Queues (VMDQ)

Support





Smart Uninstall

Support





Intel Virtualization (SR-IOV)

Support





Rated Power

7.1W





Speed and slot width

5GT/S, x4Lane





Physical specifications



Long

195mm

Width

111.08mm

Full Height Blade

12.00cm

PCIE Specifications

X4

Operating System Support



Platform

Supported systems

X86 Platform

Linux*

X86 Platform

CentOS 6.6~8

X86 Platform

RedHat 6.6~7.4

X86 Platform

Ubuntu 14.04/16.10

X86 Platform

Linux SLES 11(SP3)

X86 Platform

Linux SLES 12(sp1)

SUNWAY

Deepin

Kun Peng

NeoKylin

Loongson

NeoKylin

Phytium

KylinOS

HYGON

UOS

ARM

Kirin System
