Home > Products > 1G Ethernet Bypass Adapter> Gigabit Quad-Port Ethernet Server Bypass Adapter with GRT G350AM4Ⓔ with SX Module

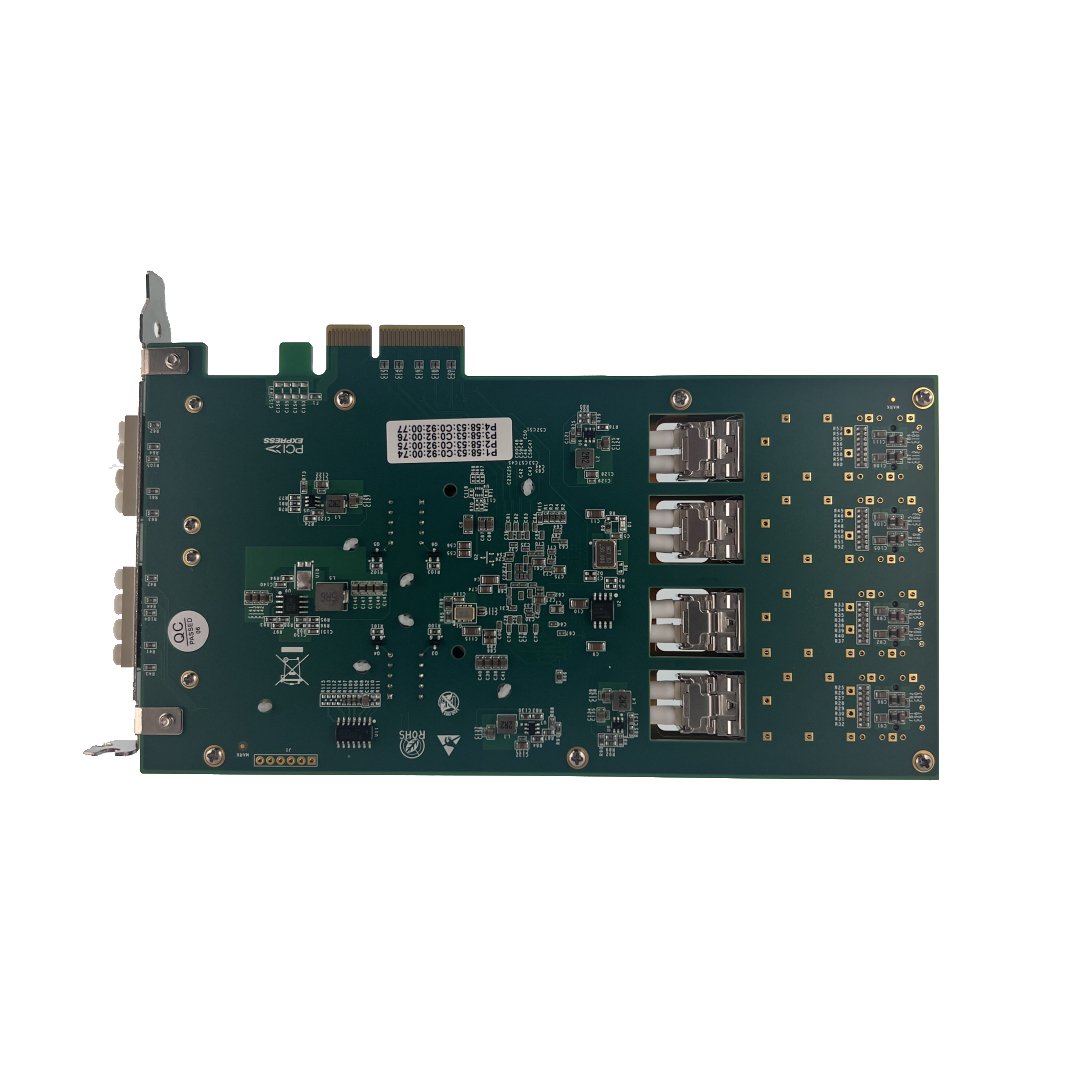

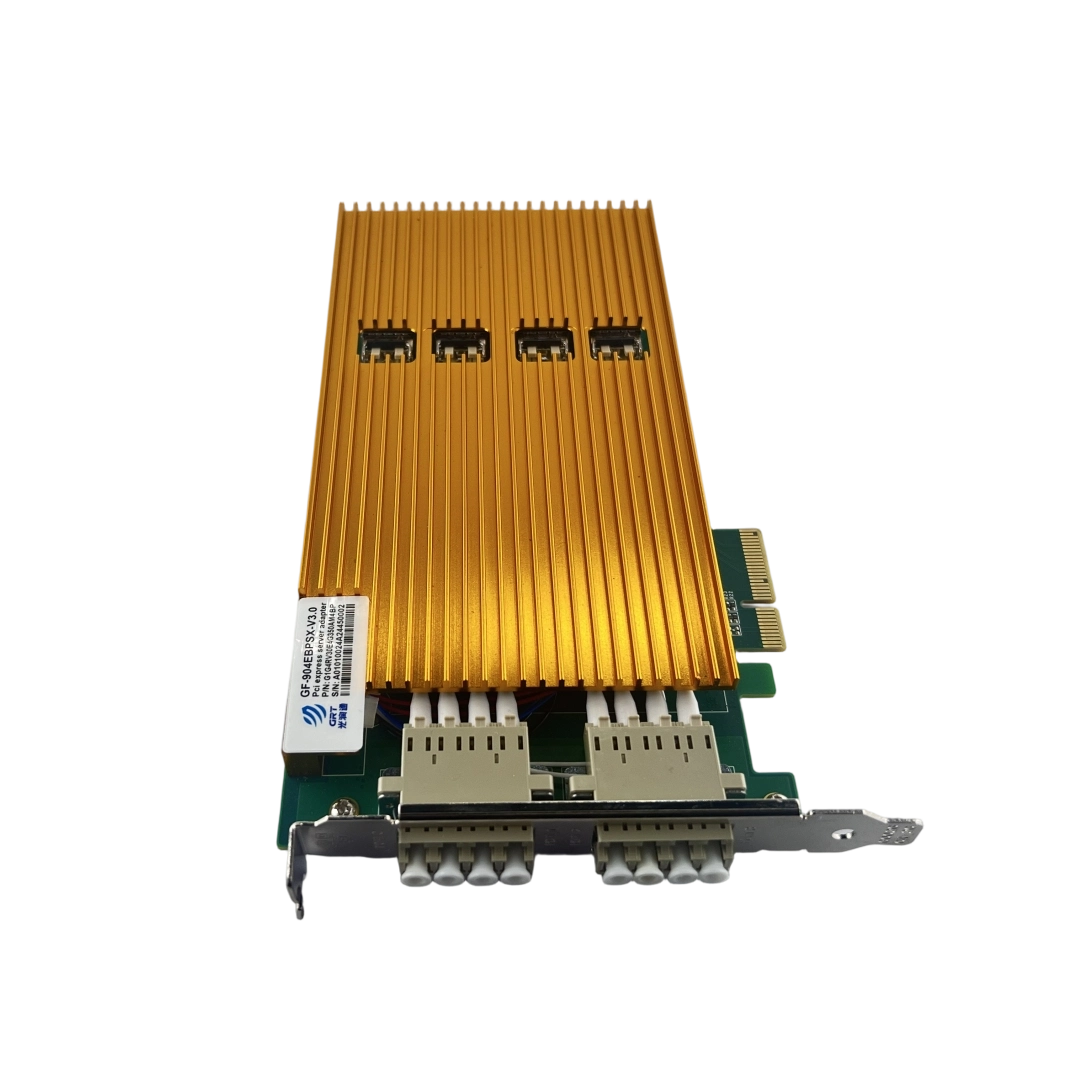

Gigabit Quad-Port Ethernet Server Bypass Adapter with GRT G350AM4Ⓔ with SX Module

Price: $******
Code: FF-904EBPSX-V3.0
Brand: GRT
Support:OEM、ODM
+
-
Buy Now
Add to Cart
My Collection
Related Products

Product features

Four-port Gigabit Ethernet adapter provides Gigabit multi-mode SFP optical port interface connection

Innovative power management function and energy-saving Ethernet, integrated direct storage improves efficiency and reduces power consumption

Intelligent bypass control chip, open source API design integrates standard NIC function and bypass function

Pure domestic design, independent control



Key attributes

Model Number: FF-904EBPSX-V3.0

Brand Name: GRT

Warranty Time: 3 years

Certification: FCC, RoHS, CE

Data rate: 1GbE

Ethernet controller: GRT®G350AM4Ⓔ

Application: Servers, GAP, Firewall, storage device,etc.

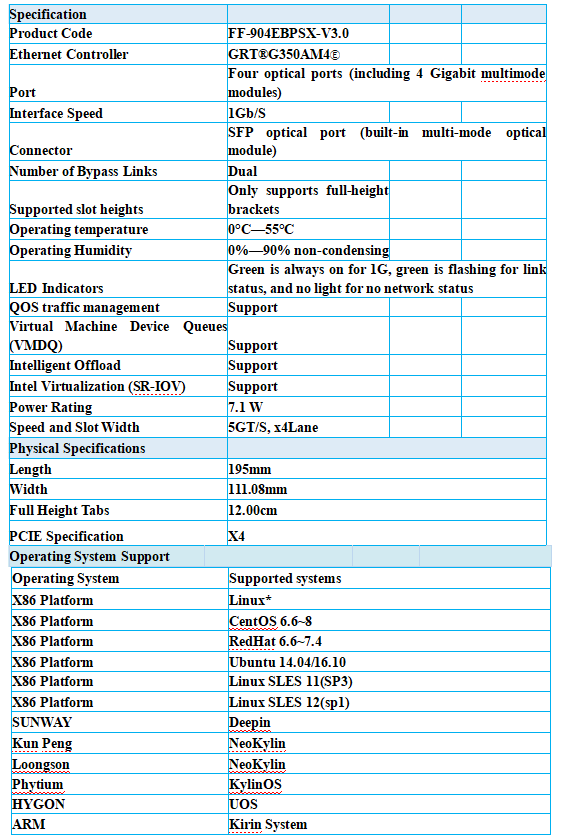

Specification







Product Code

FF-904EBPSX-V3.0





Ethernet Controller

GRT®G350AM4Ⓔ





Port

Four optical ports (including 4 Gigabit multimode modules)

Interface Speed

1Gb/S





Connector

SFP optical port (built-in multi-mode optical module)

Number of Bypass Links

Dual





Supported slot heights

Only supports full-height brackets





Operating temperature

0°C—55°C





Operating Humidity

0%—90% non-condensing





LED Indicators

Green is always on for 1G, green is flashing for link status, and no light for no network status

QOS traffic management

Support





Virtual Machine Device Queues (VMDQ)

Support





Intelligent Offload

Support





Intel Virtualization (SR-IOV)

Support





Power Rating

7.1 W





Speed and Slot Width

5GT/S, x4Lane





Physical Specifications



Length

195mm

Width

111.08mm

Full Height Tabs

12.00cm

PCIE Specification

X4

Operating System Support



Operating System

Supported systems

X86 Platform

Linux*

X86 Platform

CentOS 6.6~8

X86 Platform

RedHat 6.6~7.4

X86 Platform

Ubuntu 14.04/16.10

X86 Platform

Linux SLES 11(SP3)

X86 Platform

Linux SLES 12(sp1)

SUNWAY

Deepin

Kun Peng

NeoKylin

Loongson

NeoKylin

Phytium

KylinOS

HYGON

UOS

ARM

Kirin System



Product description

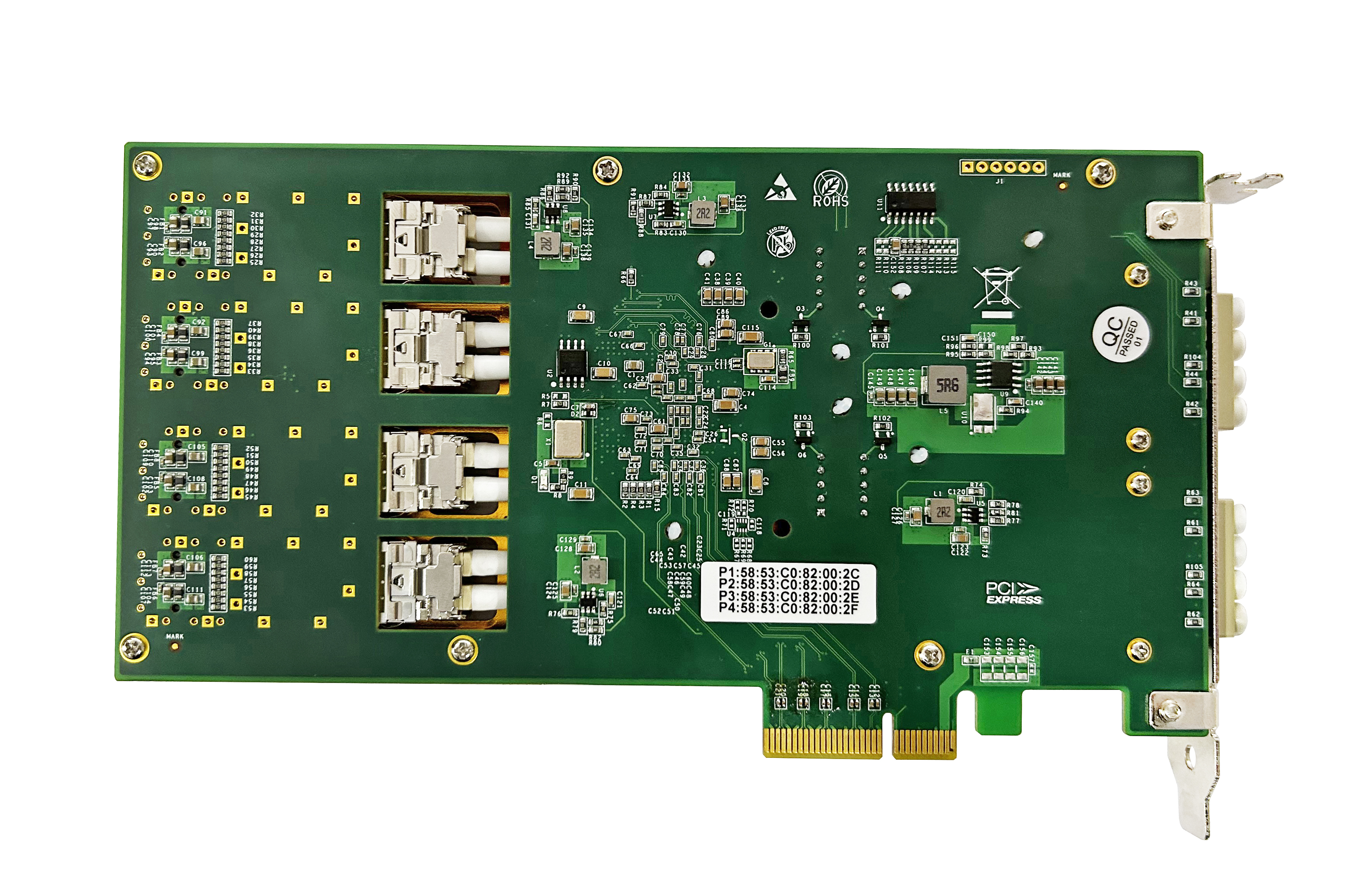

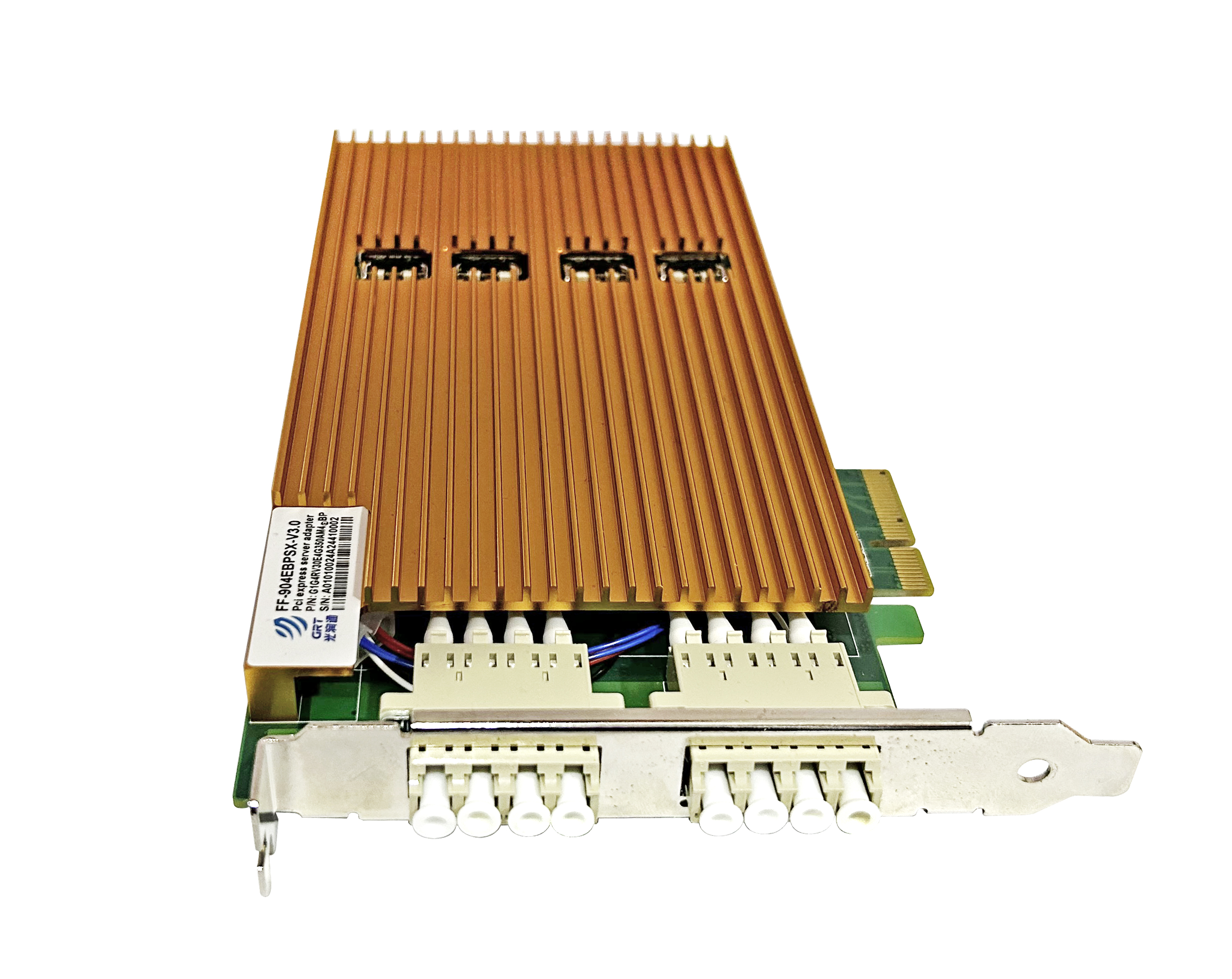

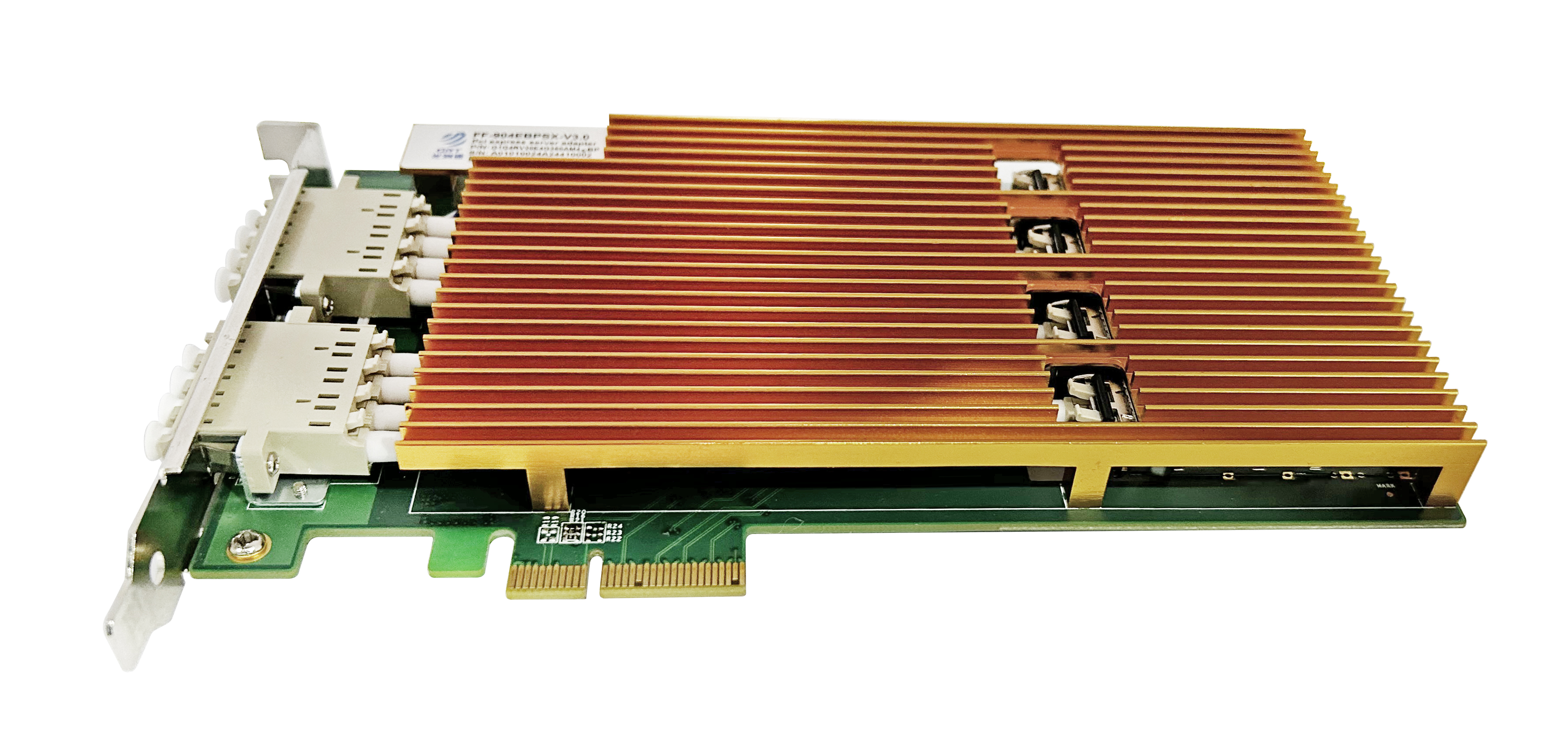

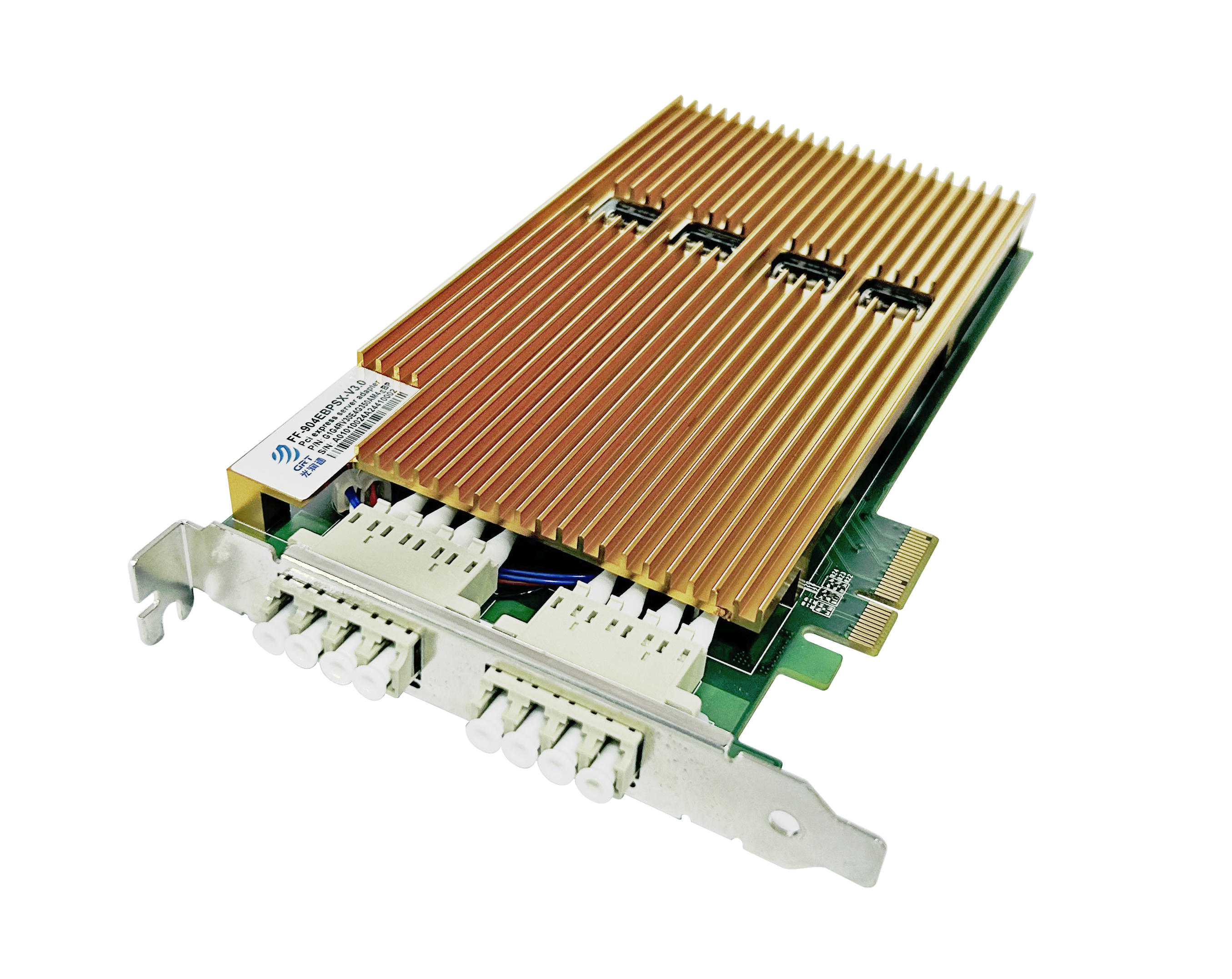

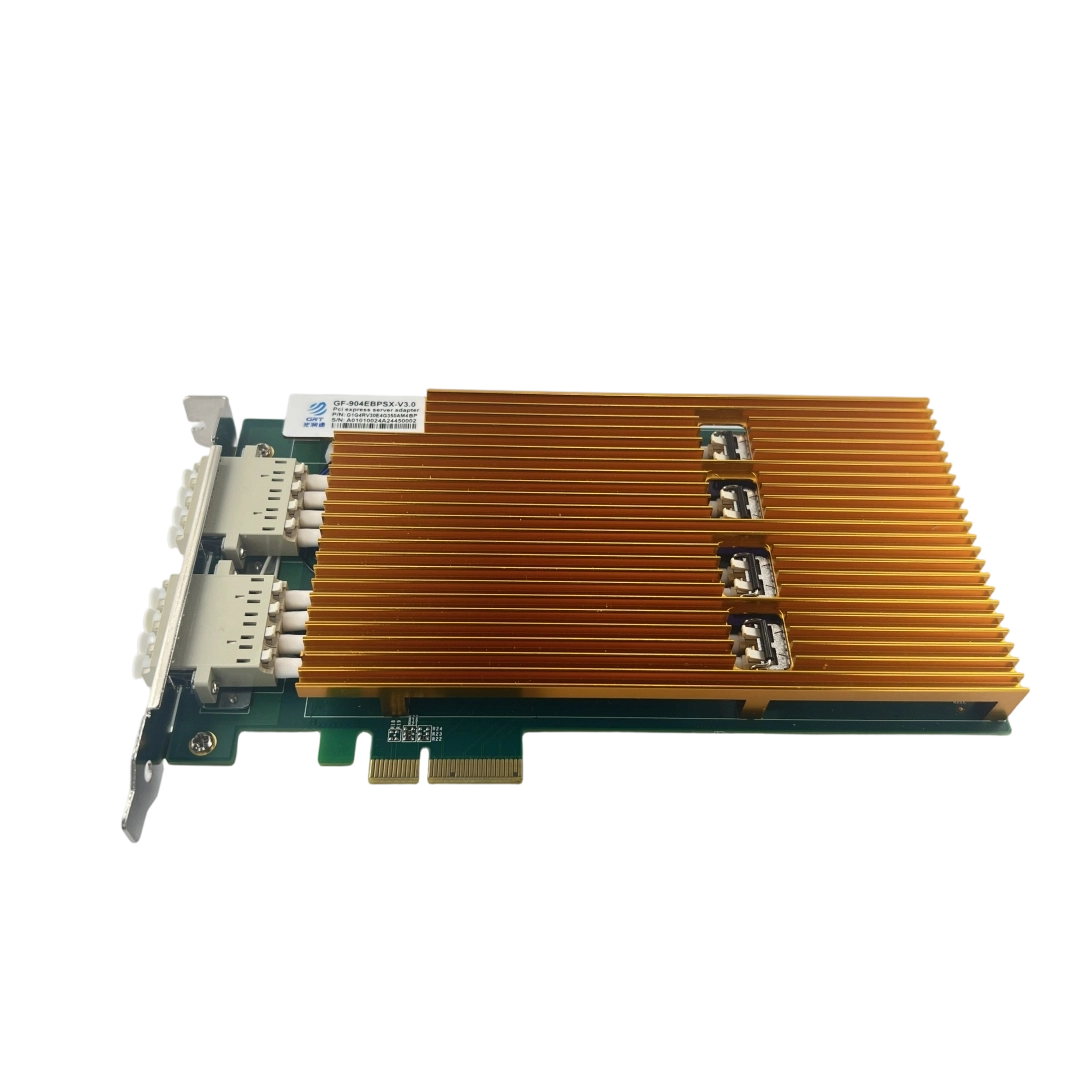

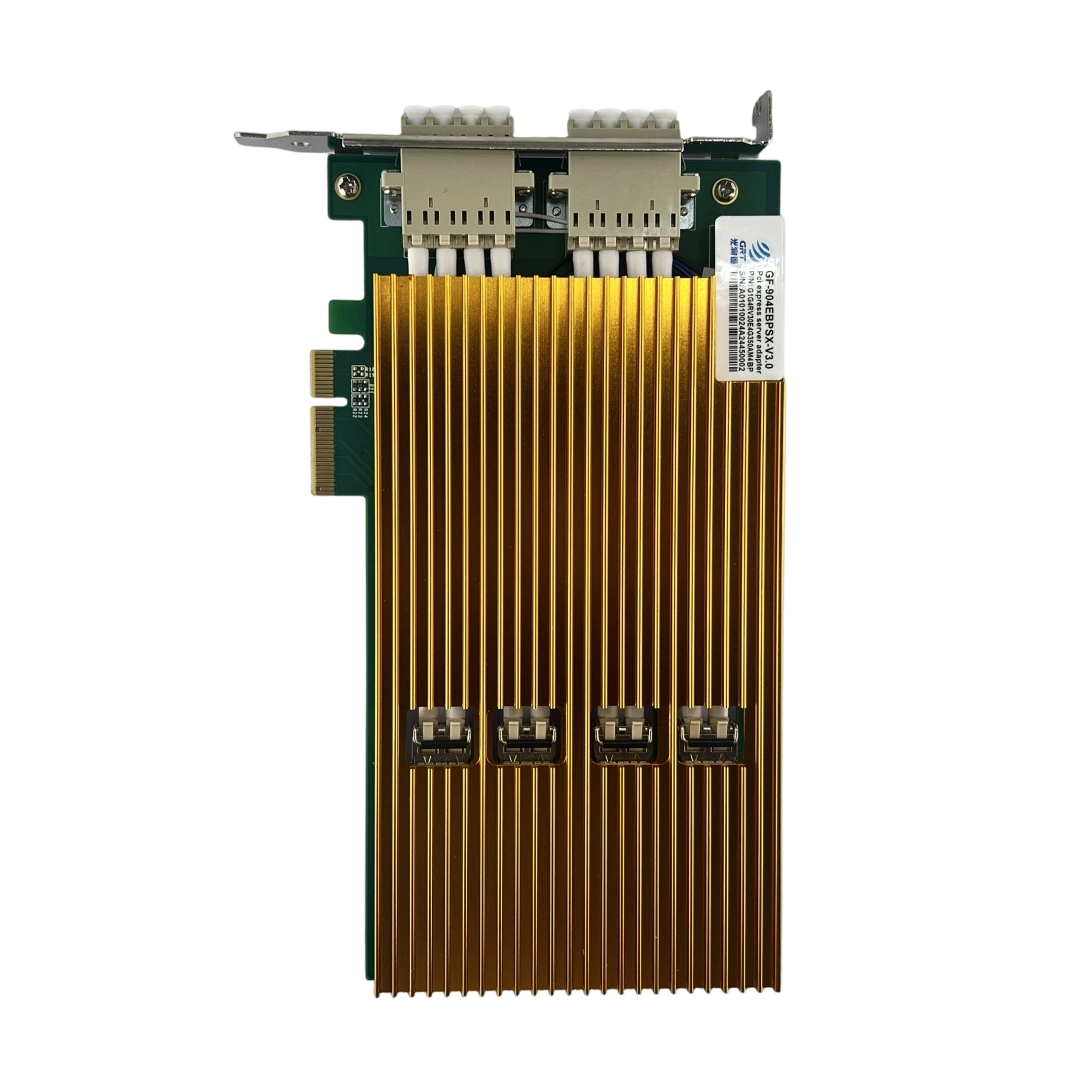

The Gigabit multimode SFP optical port Bypass Ethernet bypass server adapter produced by Guangruntong, FF-904EBPSX-V3.0 is a PCI-Express X4 network interface card. The adapter contains four Gigabit Ethernet ports and 4 Gigabit 850nm multimode optical modules. The FF-904EBPSX-V3.0 adapter is oriented to inline network systems. When a network link fails, it can switch to bypass and continue communication, providing a backup link protection mechanism.

The FF-904EBPSX-V3.0 four-port Gigabit Ethernet bypass server adapter supports normal bypass and disconnect modes. In normal mode, the ports are independent interfaces, while in bypass mode, all data packets received from one port are transmitted to the adjacent port, and in disconnect mode, the adapter simulates a switch/path cable disconnection.

The FF-904EBPSX-V3.0 server adapter can bypass or disconnect its Ethernet port when the host system fails or the power is turned off. Continue to work in bypass mode, the connection is switched to another port, so in bypass mode, all packets received from one port are sent to the adjacent port and vice versa. This feature can bypass the failed system and provide the longest uptime for the network. FF-904EBPSX-V3.0 Quad Port Gigabit PCI Bypass Server Adapter, includes an onboard WDT (Watchdog Timer) controller. The adapter's software driver or software application can write commands to the onboard WDT controller. The adapter's software driver, WDT controller and bypass circuit provide an interface to control and manage the adapter mode.

Guangruntong FF-904EBPSX-V3.0 Quad Port Gigabit Ethernet Bypass Server Adapter, based on Guangruntong G350AM4Ⓔ Ethernet controller, has superior product performance.



Compatibility

All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.

For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application.






Packing & Shipping

Packed in blister box and paper box,  1piece/box. Normal orders to be shipped within 2 working days upon receipt of payment.

We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.

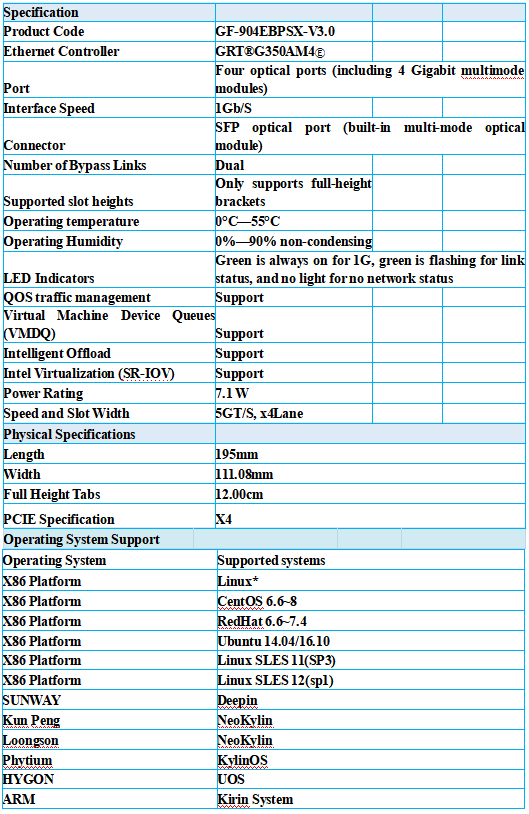

Specification







Product Code

FF-904EBPSX-V3.0





Ethernet Controller

GRT®G350AM4Ⓔ





Port

Four optical ports (including 4 Gigabit multimode modules)

Interface Speed

1Gb/S





Connector

SFP optical port (built-in multi-mode optical module)

Number of Bypass Links

Dual





Supported slot heights

Only supports full-height brackets





Operating temperature

0°C—55°C





Operating Humidity

0%—90% non-condensing





LED Indicators

Green is always on for 1G, green is flashing for link status, and no light for no network status

QOS traffic management

Support





Virtual Machine Device Queues (VMDQ)

Support





Intelligent Offload

Support





Intel Virtualization (SR-IOV)

Support





Power Rating

7.1 W





Speed and Slot Width

5GT/S, x4Lane





Physical Specifications



Length

195mm

Width

111.08mm

Full Height Tabs

12.00cm

PCIE Specification

X4

Operating System Support



Operating System

Supported systems

X86 Platform

Linux*

X86 Platform

CentOS 6.6~8

X86 Platform

RedHat 6.6~7.4

X86 Platform

Ubuntu 14.04/16.10

X86 Platform

Linux SLES 11(SP3)

X86 Platform

Linux SLES 12(sp1)

SUNWAY

Deepin

Kun Peng

NeoKylin

Loongson

NeoKylin

Phytium

KylinOS

HYGON

UOS

ARM

Kirin System
