GRT 10G Single-mode Single Channel Dual Fiber Port Server Bypass Ethernet adapter
< Back1、Product feature
- The dual-port 10GEthernet adapter provides a 10g single-mode SFP+ optical port interface connection
- Innovative power management features and energy efficient Ethernet, integrated direct memory improvements
- Improve efficiency and reduce power consumption
- Intelligent Bypass control chip, open source API design and integration of standard NIC functions,It has the ability to function as Bypass
- Pure domestic design, independent control

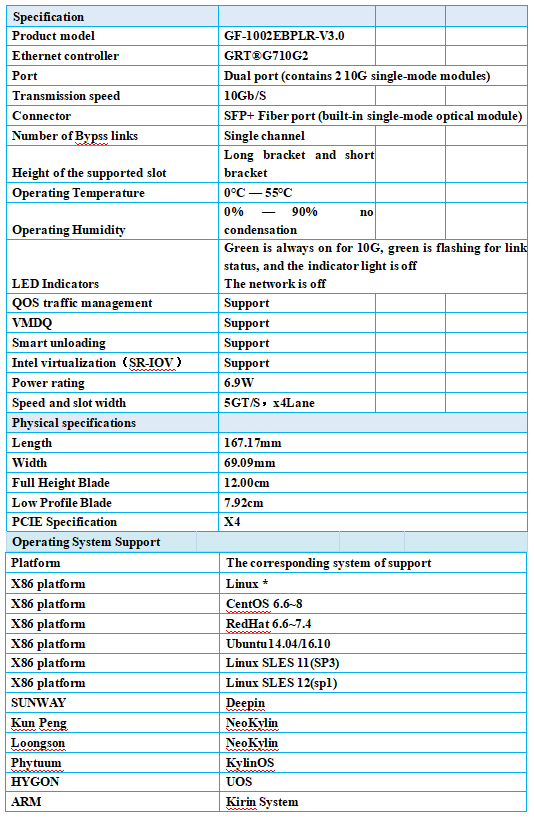

2、Key attributes
Model Number: GF-1002EBPLR-V3.0
Brand Name: GRT
Warranty Time: 3 years
Certification:FCC, RoHS, CE
Data rate: 10 GbE
Ethernet controller:GRT®G710G2
Application:Servers, GAP, Firewall, storage device,etc.
3、Product description

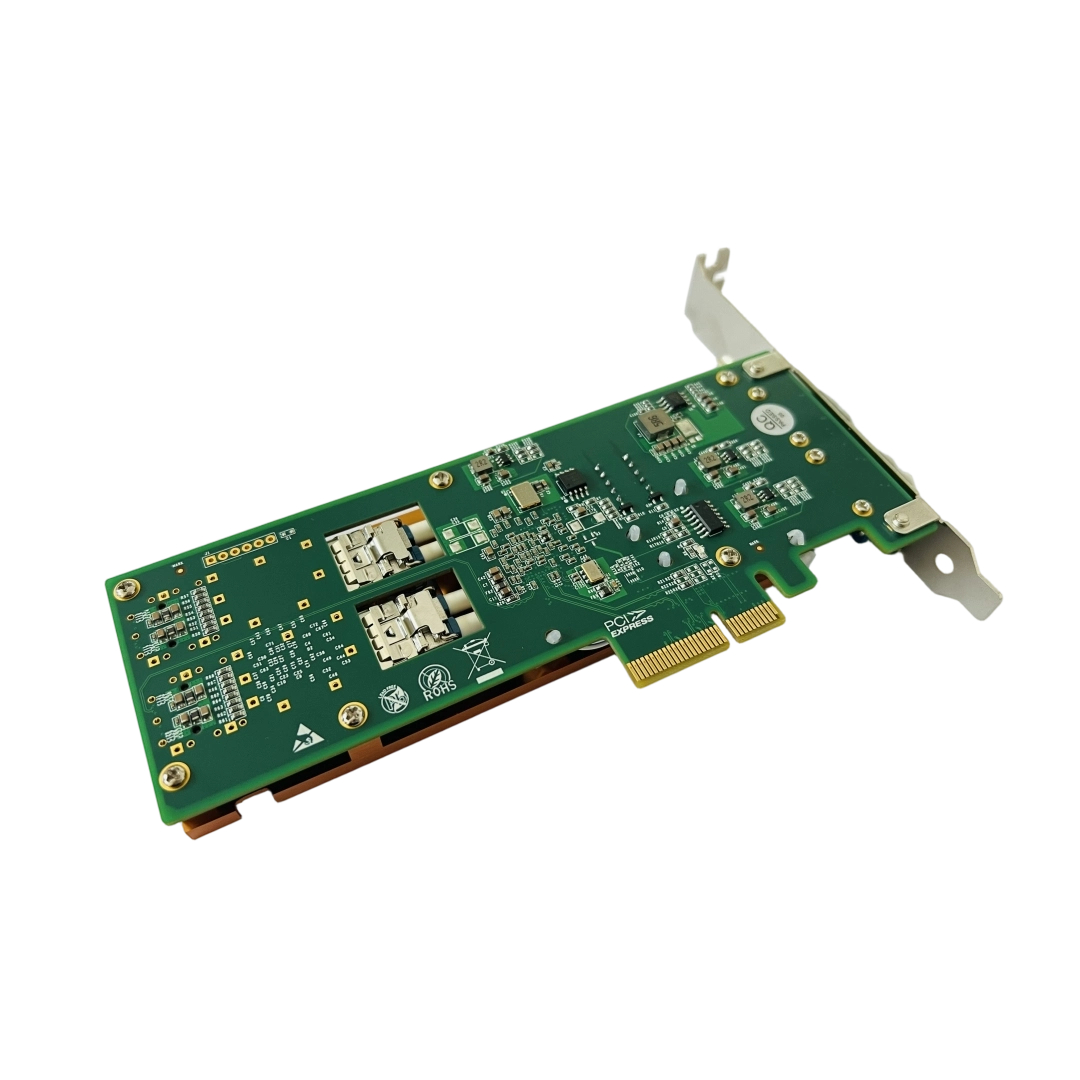

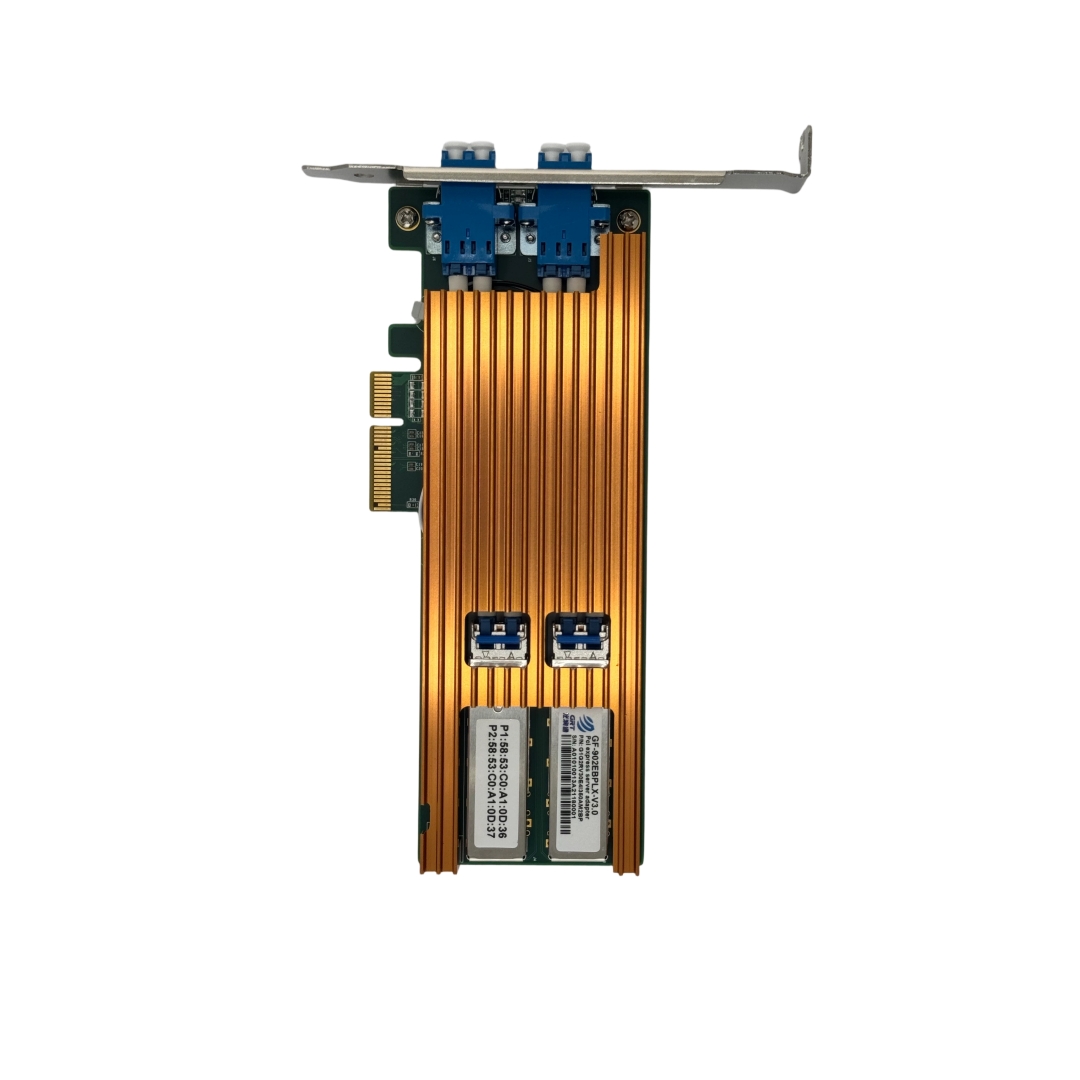

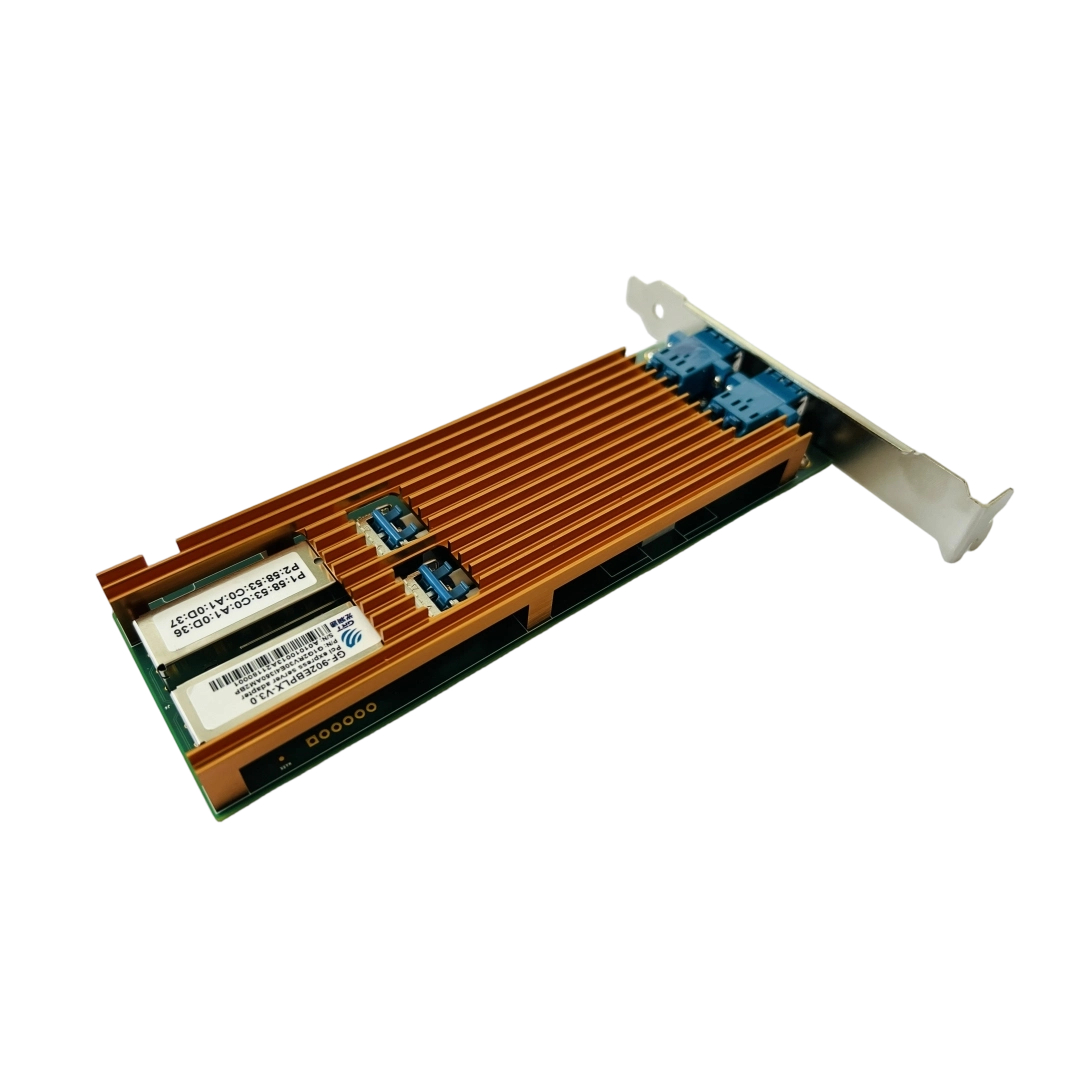

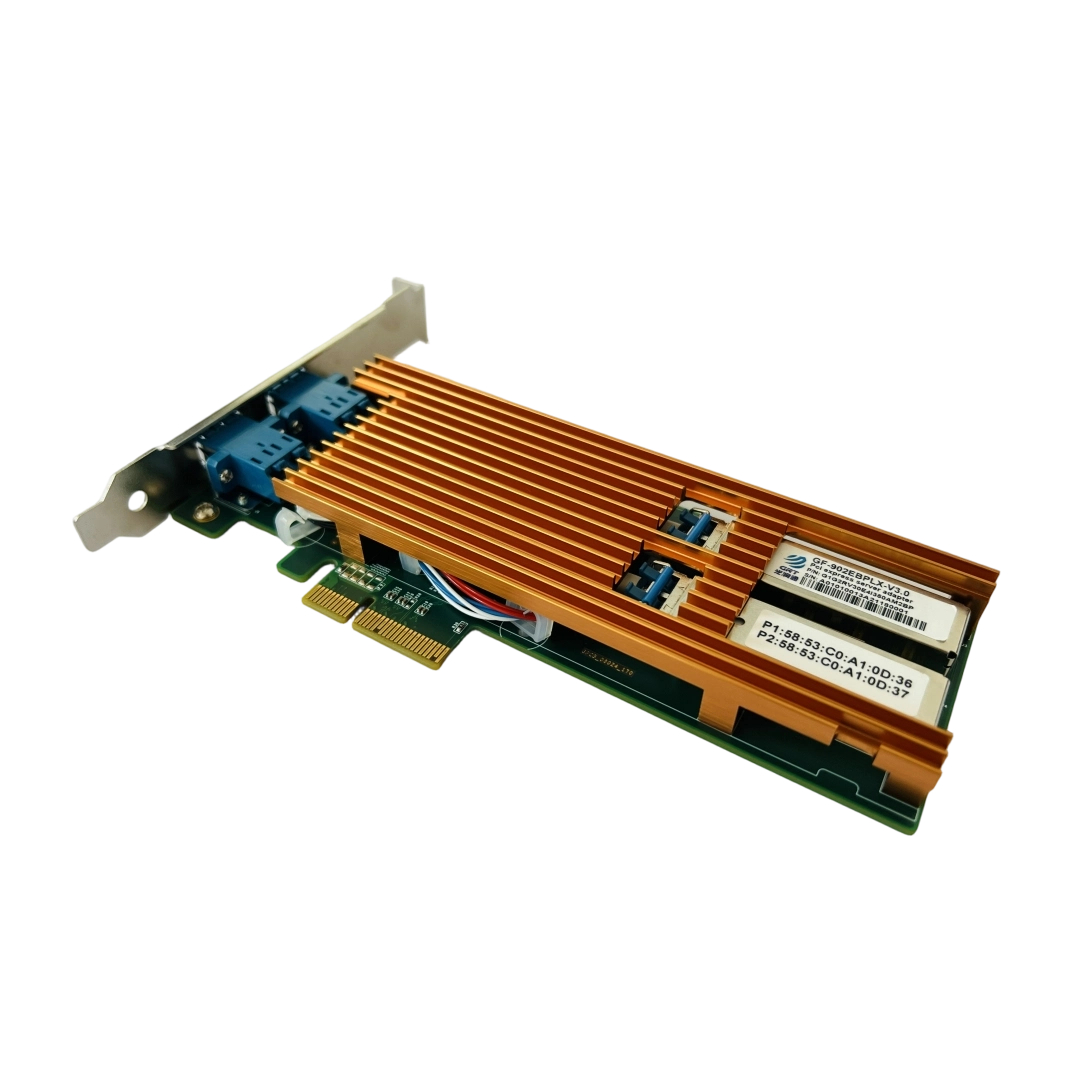

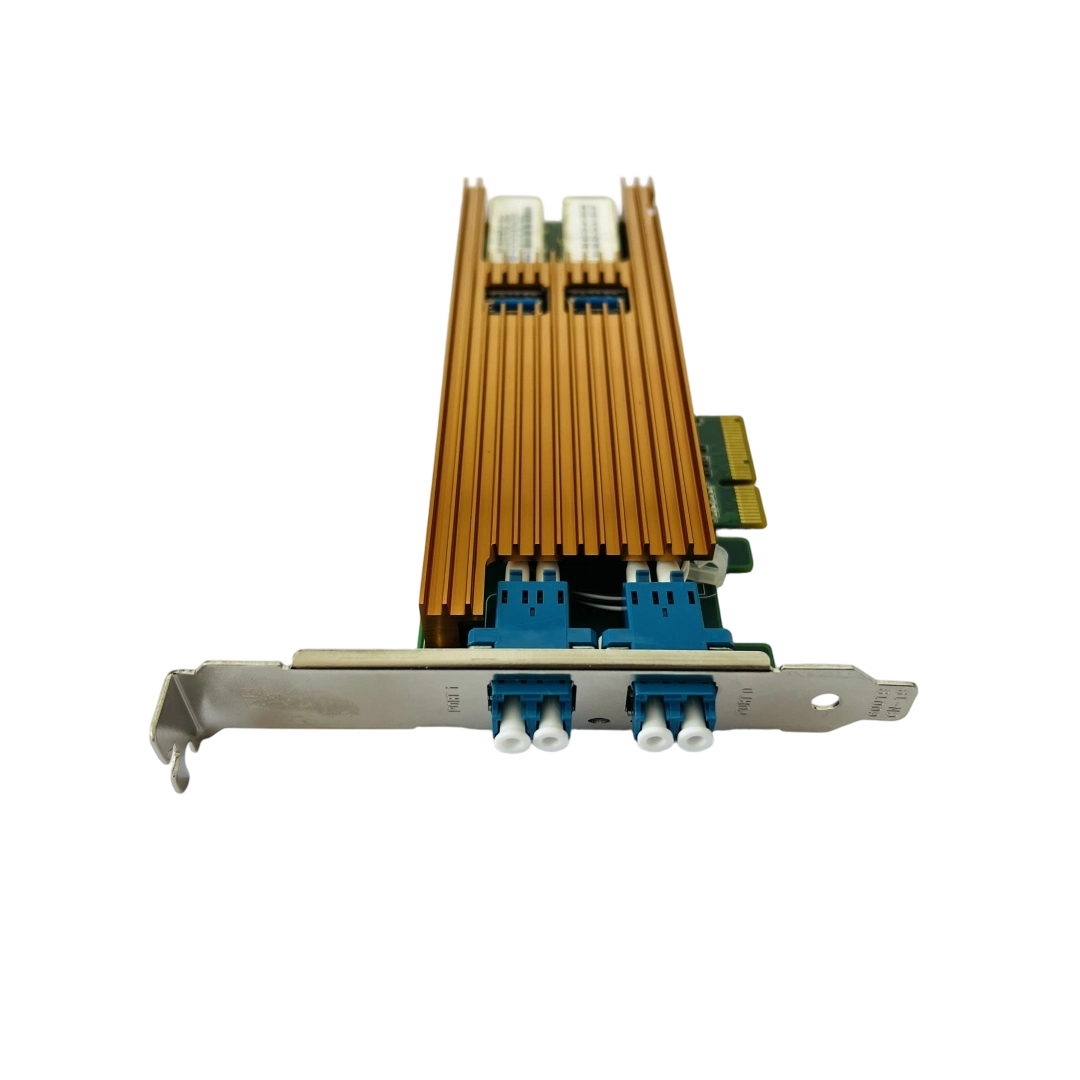

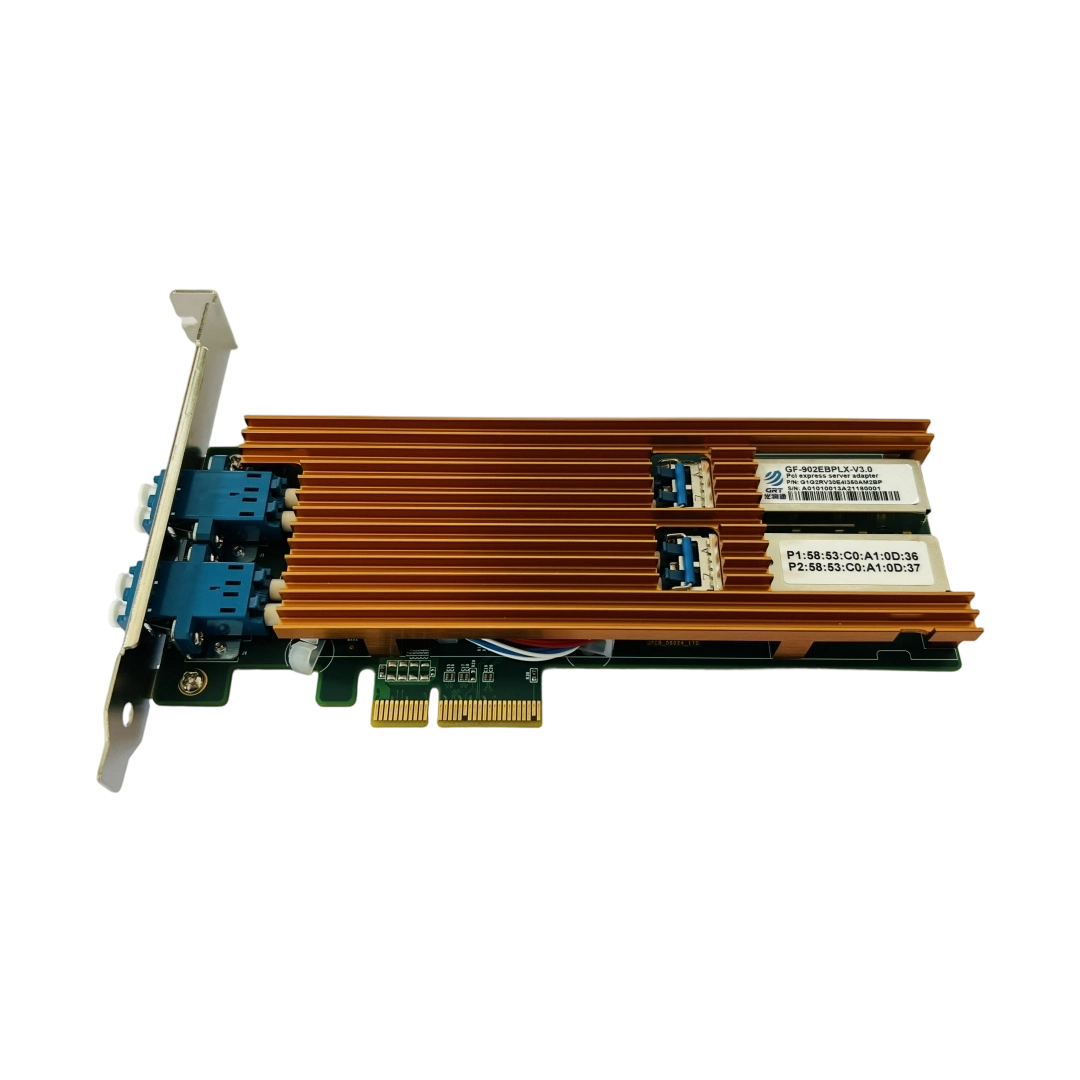

The GF-1002EBPLR-V3.0 is a PCI-Express X4 network interface card for the 10G single-mode SFP+ optical port Bypass Ethernet bypass server adapter produced by Guangrun Tong. The adapter contains two 10G Ethernet ports with two 10G 1310nm single-mode optical modules. The GF-1002EBPLR-V3.0 adapter is designed for in-line network systems and provides a backup link protection mechanism by switching the value bypass to continue communication in case of network link failure.
GF-1002EBPLR-V3.0 Dual-port 10G Ethernet bypass server adapter, supports normal bypass and disconnect mode.In normal (Normal) mode, the port is an independent interface, while in bypass (BYPASS) mode, all packets received from a port are transmitted to the adjacent port, and in disconnect (Disconnect) mode, the adapter simulates a switch/path cable break.
GF-1002EBPLR-V3.0 server adapter can bypass or disconnect its Ethernet ports in the event of a host system failure or power shutdown. Continue working in bypass (Bypass) mode and connect to another port, so in bypass mode, all packets received from one port are sent to the adjacent port, and vice versa. This feature bypasses the faulty system and provides the longest possible uptime for the network. The GF-1002EBPLR-V3.0 dual-port 10G PCI Bypass server adapter includes an onboard WDT (watchdog timer) controller.The adapter's software driver or software application can write commands to the onboard WDT controller.The adapter's software driver, WDT controller, and bypass circuit provide an interface for controlling and managing the adapter mode.
The Guangrun Tong(GRT) GF-1002EBPLR-V3.0 dual-port 10G Ethernet bypass server adapter is based on the Guangrun Tong G710G2 Ethernet controller and has superior product performance.
4、Compatibility
All of GRT's products are open sourced, fully compatible with major brands' products and devices, such as Intel, Dell, Cisco, Finisar, Arista, HP, Mellanox, Juniper, HUAWEI, H3C, etc.
For other brands' devices, please specify when ordering so that we can write corresponding codes for your easy application
.
5、Packing & Shipping
Packed in blister box and paper box, 1piece/box. Normal orders to be shipped
within 2 working days upon receipt of payment.
We can ship by TNT, FedEx, EMS, UPS, DHL, or other named forwarders as per your request.
